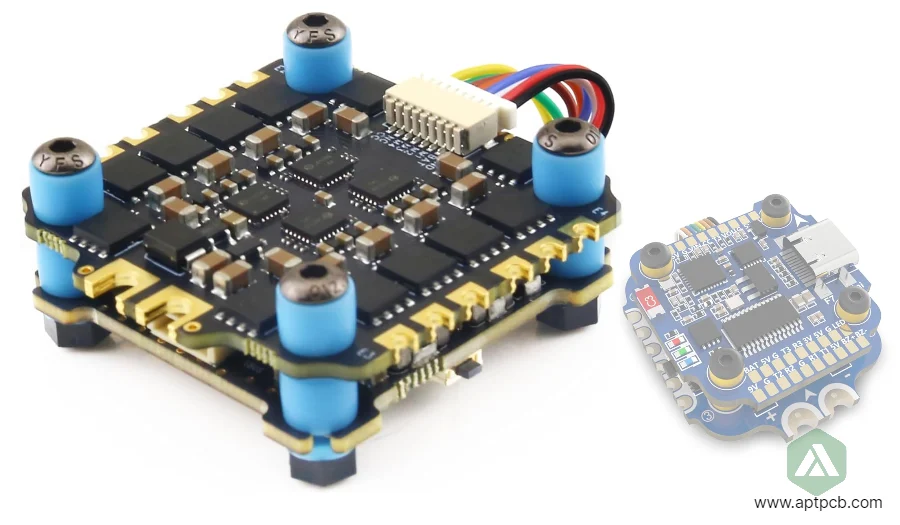

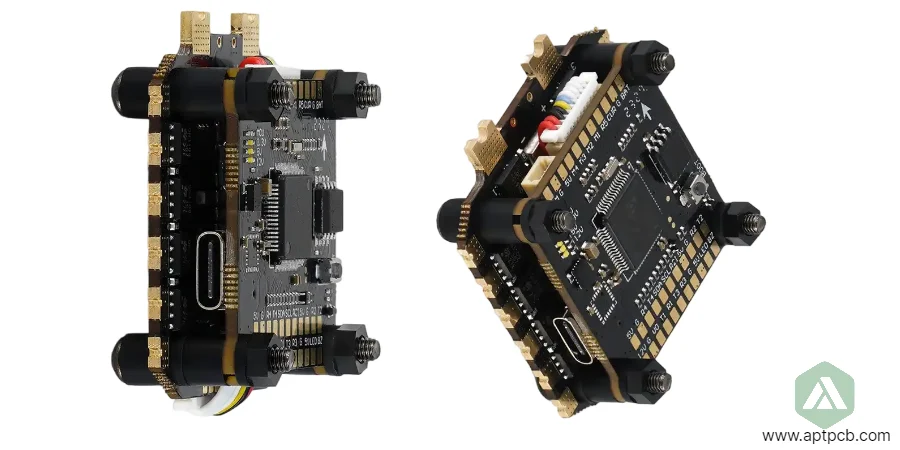

Flight controller assemblies integrate high-performance inertial measurement units (IMUs), barometric sensors, magnetometers, GPS receivers, and microcontrollers executing sensor fusion algorithms at 1-8kHz update rates providing precise attitude estimation, autonomous navigation, and flight stabilization across consumer quadcopters, commercial inspection drones, and autonomous delivery UAVs requiring reliable operation maintaining ±1° attitude accuracy, <5cm GPS positioning precision, and fail-safe operation protecting against sensor failures, communication loss, or software errors through thousands of flight hours.
At APTPCB, we deliver specialized flight controller assembly services implementing high-reliability sensor integration, validated algorithm execution, and comprehensive calibration procedures with turnkey assembly capabilities. Our expertise supports racing controllers requiring 8kHz loop rates through commercial autopilots demanding waypoint navigation and return-to-home functionality with validated manufacturing ensuring consistent sensor performance and algorithm execution.
Achieving Precision Sensor Integration and Calibration
Flight controller performance fundamentally depends on sensor accuracy as gyroscope bias errors cause attitude drift, accelerometer misalignment creates position errors, and magnetometer interference causes heading deviation potentially causing navigation failures or unstable flight. Achieving <0.5°/s gyroscope bias stability, <50mg accelerometer accuracy, and <5° heading accuracy across -40 to +85°C temperature ranges while maintaining microsecond-level timing synchronization presents significant technical challenges. Inadequate sensor performance causes attitude drift requiring continuous manual correction, position errors affecting autonomous navigation, or complete flight instability causing crashes — directly impacting operational safety, mission success, and customer satisfaction especially for commercial applications requiring autonomous operation.
At APTPCB, our assembly services implement validated sensor integration achieving precision specifications through comprehensive calibration.
Key Sensor Integration Techniques
- High-Performance IMU Selection: Industrial-grade MEMS sensors (Invensense ICM-42688, Bosch BMI088) achieving <0.5°/s bias stability and 1000Hz+ sample rates supporting high-bandwidth stabilization loops with testing quality validation.
- Precision Sensor Mounting: Automated pick-and-place with ±25μm accuracy ensuring IMU alignment maintaining <1° mounting tolerance critical for sensor fusion accuracy.
- Multi-Sensor Redundancy: Dual or triple IMU configurations enabling sensor fault detection and continued operation despite single sensor failures supporting safety-critical applications.
- Temperature Compensation: Factory calibration measuring sensor characteristics across temperature ranges storing compensation parameters in non-volatile memory maintaining accuracy despite environmental variations.
- Six-Point Calibration Protocols: Automated calibration measuring sensor outputs in multiple orientations calculating offset and scale factors achieving specified accuracy across full measurement range.
- Validation Testing: Post-assembly testing on precision rate tables and vibration platforms validating sensor accuracy and algorithm performance across operating conditions through functional testing procedures.
Calibrated Sensor Performance
By implementing precision manufacturing processes, validated calibration procedures, and comprehensive sensor testing supported by automated calibration equipment, APTPCB delivers flight controllers achieving sensor accuracy specifications supporting stable flight control, accurate navigation, and reliable autonomous operation across consumer, commercial, and military UAV applications.
Executing High-Rate Sensor Fusion and Control Algorithms
Modern flight controllers execute sophisticated sensor fusion algorithms (Extended Kalman Filters, complementary filters) combining gyroscope, accelerometer, magnetometer, and GPS data at 1-8kHz update rates providing optimal state estimation rejecting sensor noise while tracking fast dynamics. Algorithm execution requires high-performance microcontrollers (ARM Cortex-M7 at 400-600MHz) with floating-point units executing complex mathematical operations within strict timing constraints. Inadequate computational performance causes control loop delays degrading stability margins, insufficient filter bandwidth allowing noise affecting control precision, or timing jitter creating oscillations — directly impacting flight quality, control responsiveness, and operational safety especially for aggressive flight profiles in racing or industrial inspection applications.
At APTPCB, our manufacturing supports advanced flight controller designs executing demanding algorithms reliably.
Algorithm Execution Implementation Techniques
- High-Performance MCU Integration: ARM Cortex-M7 microcontrollers (STM32H7, NXP i.MX RT) at 480-600MHz with double-precision FPU executing sensor fusion and control algorithms with computational headroom supporting feature expansion through quality system manufacturing.
- Real-Time Operating System: Deterministic RTOS (FreeRTOS, ChibiOS) ensuring predictable task scheduling maintaining consistent loop timing despite varying computational loads.
- DMA and Peripheral Optimization: Direct memory access for sensor data transfer and DMA-based SPI/I2C communications minimizing CPU overhead maximizing processing power available for control algorithms.
- Floating-Point Optimization: Algorithm implementation utilizing hardware FPU maintaining precision while achieving real-time performance requirements.
- Timing Validation: Execution time profiling ensuring worst-case algorithm execution completes within loop period with adequate margin preventing timing violations causing instability.
- Algorithm Validation Testing: Flight testing across diverse conditions validating control performance, stability margins, and failure mode handling meeting specifications across operational envelope.
Validated Algorithm Performance
Through high-performance hardware selection, optimized software implementation, and comprehensive validation testing coordinated with manufacturing processes, APTPCB enables flight controllers executing advanced control algorithms achieving specified loop rates, stability margins, and control precision supporting high-performance consumer racing drones through safety-critical commercial autonomous platforms.
Integrating GPS and Autonomous Navigation Capabilities
Autonomous flight operations require GPS integration providing position, velocity, and timing information enabling waypoint navigation, return-to-home functionality, and position hold modes. Achieving <5m CEP (circular error probable) positioning accuracy, <0.5m/s velocity estimation, and reliable satellite tracking despite multipath, interference, or limited sky visibility presents significant challenges. Inadequate GPS performance causes navigation errors affecting autonomous missions, position drift causing fly-away incidents, or loss-of-GPS situations requiring manual recovery — significantly impacting operational safety, mission reliability, and commercial viability especially for delivery, surveying, or inspection applications requiring precise autonomous navigation.
At APTPCB, our assembly implements validated GPS integration supporting reliable autonomous operations.
GPS Integration Techniques
- High-Sensitivity GPS Receivers: Modern GPS modules (u-blox M10, Quectel L96) supporting multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) improving satellite availability and positioning accuracy through NPI assembly prototyping.
- RTK GPS Implementation: Real-time kinematic GPS achieving centimeter-level positioning accuracy supporting precision agriculture, surveying, and inspection applications requiring high accuracy.
- GPS/IMU Sensor Fusion: Tightly-coupled integration combining GPS position/velocity with IMU measurements providing continuous navigation despite temporary GPS outages or signal degradation.
- Antenna Placement Optimization: Strategic GPS antenna location maximizing sky visibility while minimizing interference from motors, ESCs, or RF transmitters maintaining signal quality.
- GPS Jamming Detection: Signal strength and satellite count monitoring detecting interference or jamming enabling fallback to IMU-based navigation or controlled landing.
- Compass Calibration: Automated magnetometer calibration compensating for hard and soft iron distortions from drone structure and electronics achieving accurate heading estimation supporting GPS-denied navigation.
Reliable Navigation Performance
By implementing validated GPS integration, sensor fusion algorithms, and comprehensive calibration procedures supported by manufacturing expertise, APTPCB enables flight controllers achieving navigation accuracy and reliability specifications supporting autonomous commercial operations, waypoint navigation, and return-to-home functionality across diverse UAV applications and mission profiles.
Providing Comprehensive Fail-Safe and Safety Features
Flight controllers managing autonomous operations must detect and respond to failures including sensor malfunctions, communication loss, battery depletion, or motor failures implementing fail-safe procedures protecting aircraft and ground personnel. Inadequate safety implementation causes uncontrolled descents from loss-of-signal, fly-away incidents from navigation failures, or crashes from undetected motor failures — creating safety hazards, regulatory compliance issues, and significant liability exposure especially for commercial operations requiring FAA Part 107 or EASA compliance.
At APTPCB, our manufacturing supports safety-critical flight controller designs implementing comprehensive protection features.
Safety Implementation Techniques
- Redundant Sensor Architecture: Dual IMU, barometer, or magnetometer configurations enabling sensor cross-checking detecting failures and maintaining operation despite single sensor malfunctions through mass production quality control.
- Loss-of-Signal Procedures: Configurable fail-safe actions (return-to-home, land immediately, hover) activated during communication loss ensuring controlled recovery despite radio link failure.
- Battery Monitoring: Voltage and current monitoring detecting low battery conditions triggering warnings and forced landing preventing battery over-discharge causing crash.
- Geofencing Implementation: Virtual boundaries preventing flight beyond authorized areas supporting regulatory compliance and preventing fly-away incidents.
- Pre-Flight Safety Checks: Automated checks validating sensor functionality, GPS lock, battery voltage, and configuration correctness before allowing takeoff preventing operations with degraded systems.
- Flight Logging and Analysis: Comprehensive data logging capturing sensor data, control outputs, and system events supporting incident investigation and continuous safety improvement.
Safety-Critical Operation
Through comprehensive safety feature implementation, validated failure detection algorithms, and thorough testing procedures supported by quality management systems, APTPCB enables flight controllers meeting safety requirements supporting commercial UAV operations, recreational use, and specialty applications requiring reliable autonomous flight with comprehensive fail-safe protection.
Enabling Communication and Telemetry Integration
Flight controllers interface with RC receivers, telemetry radios, companion computers, and ground control stations exchanging control commands, telemetry data, and mission parameters requiring reliable low-latency communications supporting manual control, autonomous missions, and real-time monitoring. Inadequate communication implementation causes control latency affecting flight quality, telemetry dropouts preventing monitoring, or incompatibility limiting system integration — significantly impacting operational usability, mission flexibility, and customer satisfaction especially for commercial applications requiring integration with enterprise systems.
At APTPCB, our assembly supports comprehensive communication interfaces enabling system integration.
Communication Integration Techniques
- Multiple Protocol Support: PWM, PPM, SBUS, CRSF receiver interfaces supporting diverse RC systems plus UART/I2C/CAN for peripherals enabling flexible system configuration.
- MAVLink Protocol Implementation: Industry-standard telemetry protocol enabling integration with ground control stations (Mission Planner, QGroundControl) supporting mission planning and real-time monitoring.
- Companion Computer Interface: High-speed serial or Ethernet connections enabling integration with onboard computers (Raspberry Pi, Nvidia Jetson) supporting computer vision, AI processing, or custom applications.
- Blackbox Logging: High-speed data logging capturing full-rate sensor and control data supporting post-flight analysis and performance optimization.
- OSD Integration: On-screen display interfaces overlaying telemetry on FPV video supporting real-time monitoring during manual flight operations.
- Wireless Configuration: WiFi or Bluetooth interfaces enabling wireless parameter adjustment and firmware updates simplifying field operations through component sourcing of certified RF modules.
Comprehensive Connectivity
Through validated communication interfaces, protocol support, and system integration testing coordinated with manufacturing processes, APTPCB enables flight controllers achieving reliable communication supporting manual control, autonomous operations, and system integration across consumer FPV racing, commercial inspection, and autonomous delivery UAV applications.
Supporting Rapid Development and Production Scaling
Flight controller development requires rapid prototyping supporting algorithm development and flight testing, quick transition to pilot production validating manufacturing processes, and scalable high-volume production meeting demand across consumer and commercial markets. Inflexible manufacturing approaches cause extended development cycles delaying market introduction, quality issues during production ramp affecting reliability, or insufficient capacity limiting business growth — significantly impacting competitive position and revenue opportunities in fast-moving UAV markets.
At APTPCB, we provide comprehensive support spanning prototype through volume production.
Development and Production Support
Rapid Prototyping Services
- Quick-turn assembly delivering functional prototypes within 5-7 days supporting iterative algorithm development and flight testing cycles.
- Design for manufacturing feedback identifying potential issues enabling optimization before production commitment.
- Flexible design changes accommodating algorithm updates, sensor upgrades, or feature additions throughout development phase.
- Comprehensive testing and calibration supporting flight testing and validation activities.
Volume Production Capabilities
- Automated assembly and calibration processes achieving consistent quality across thousands of units supporting consumer and commercial programs.
- Statistical process control monitoring calibration parameters and test results ensuring production consistency and identifying process drift.
- Flexible capacity scaling accommodating demand growth from hundreds to hundreds of thousands annually through PCB conformal coating and protection services.
- Supply chain management maintaining component availability supporting uninterrupted production despite industry-wide shortages.
- Comprehensive documentation and traceability supporting warranty analysis, failure investigation, and continuous improvement.
Complete Lifecycle Support
Through comprehensive development support, validated manufacturing processes, and scalable production capabilities coordinated with experienced program management teams, APTPCB enables flight controller manufacturers successfully launching, ramping, and sustaining products across consumer racing drones, commercial inspection platforms, and autonomous delivery UAVs supporting business growth and market success worldwide.
Flight controller assemblies represent the culmination of advanced sensor integration, real-time algorithm execution, and safety-critical system design requiring specialized manufacturing expertise, comprehensive validation testing, and continuous quality management. Through precision sensor integration, validated calibration procedures, and comprehensive testing protocols supported by special PCB manufacturing capabilities, APTPCB enables UAV manufacturers deploying reliable flight controllers achieving performance specifications, safety requirements, and operational reliability supporting successful consumer products, commercial operations, and specialty applications across global drone markets.
