PCBA protection / drawing-led process

Coat the assembly.Control the boundary.

Agree the coating product, coat/no-coat map and release evidence for the populated board. Material, geometry and cure belong in one process plan.

Keep-out map
Populated circuit board with coils and components of varying heights

01 / Coat & no-coat drawing

Draw the boundaries on the actual assembly.

Close view of a populated circuit board with a large integrated circuit and white connectors
Close view of a populated circuit board with a large integrated circuit and white connectors

Draw the boundaries before programming the path.

DFM Keep-Out Rules and Selective Conformal Coating Economics

Define coated areas, keep-outs and the permitted boundary tolerance on the assembly drawing. Connector sealing, coating viscosity, wicking, component height, masking and applicator access determine the necessary clearance; a universal 1.5–2.0 mm keep-out does not fit every chemistry or process. Review tight layouts with the coating process owner before layout release and confirm any dam material or sealed-connector change for compatibility.

Specify the exact coating product, dry-film thickness range and measurement method from its datasheet and the applicable acceptance requirements. Coating chemistry designations do not by themselves establish a thickness by IPC performance class. For UV-cured products, confirm shadow-area secondary cure and its time/temperature/humidity conditions. UV fluorescence helps inspect coverage; it does not independently measure dry-film thickness. Agree representative coupon or board measurement, cure verification and acceptance sampling.

Compare manual masking and selective application using actual keep-out complexity, access, lot size, setup, fixtures, cure and rework. Programming does not automatically remove all masking or handling. Confirm application scope, incoming cleanliness and moisture controls, required records, material availability and delivery time during quotation; there is no universal economic lot threshold or fixed added turnaround.

02 / Protection architecture

Decide whether to coat, encapsulate or overmold.

Scope note The protection route alone does not establish an enclosure ingress rating or qualify high-voltage insulation.

Coat, encapsulate or overmold?

Choose conformal coating, potting or overmolding from the environmental exposure, insulation design, thermal path and repair requirements. Coating can protect selected surfaces, while encapsulation can add bulk protection and mechanical support. Neither a material name nor a filled cavity establishes an ingress rating or permits reducing high-voltage creepage without the applicable insulation design and qualification.

IEC 60529 classifies protection provided by enclosures. A target such as IP67 or IP68 requires the assembled product and its actual connectors, seals, cables and interfaces to meet the applicable test conditions. Parylene coverage or potting may be part of that design, but neither automatically makes the product waterproof.

Overmolding makes component height, board outline, material flow and connector geometry part of the molded assembly. Review thermal and mechanical process exposure before the layout and tooling are frozen. For high voltage, release creepage, clearance, solid insulation, working voltage and environmental requirements under the applicable product standard; do not assume generic coating or potting allows smaller distances.

For a material and process recommendation, send the Gerber/ODB++ package, assembly drawing, hatched keep-out layer with boundary tolerances, exact environmental exposure, operating temperature, voltage/insulation requirements, batch quantity and repair expectations. State the applicable acceptance revision/class and any material flammability requirement. Agree coating/potting/molding scope, chemistry, tooling, test conditions and release records in the quotation.
Protection optionGeometry to specifyEnvironmental boundaryThermal / mechanical reviewReworkCost and release evidence
Conformal coatingProduct-specific dry-film thickness and keep-outsQualify humidity, condensation and chemical exposure; coating alone does not establish enclosure IP protectionAdhesion, coverage, cure, thermal path and material compatibilityDepends on chemistry, access and approved stripping processMasking, application, cure, coverage and thickness evidence
Potting / encapsulationFill depth, interfaces, void criteria and component exclusion zonesQualify the complete enclosure, seals and interfaces for the intended liquid or chemical exposureExotherm, shrinkage, CTE stress, dielectric properties and heat removalOften difficult or destructive; confirm with the selected materialResin, dispensing, degassing, cure, housing and validation
OvermoldingWall geometry, connector/cable interfaces and tooling datumsTest the finished molded assembly for its claimed protectionMaterial-specific pressure, temperature, flow and component compatibilityUsually limited; review repair and replacement strategyTooling, process development, cycle time and assembly qualification

Scroll the table to review all columns.

Conformal coating is a critical process in PCB assembly, used to protect your PCBs and their components from environmental factors such as moisture, dust, chemicals, and extreme temperatures. The process involves applying a thin protective layer of polymer that conforms to the contours of the PCB, safeguarding solder joints, component leads, exposed traces, and other sensitive areas. By creating a barrier between the PCB and the external environment, conformal coating helps to extend the lifespan and ensure the reliable operation of your electronic devices.
At APTPCB, we offer high-quality conformal coating services that provide robust protection for your PCBs, whether for consumer electronics, industrial applications, or mission-critical systems. Our conformal coating solutions are designed to meet the specific needs of your products, ensuring they perform optimally even in harsh environments.
Board test fixture with support posts and a clear hinged cover
Fixture support and physical access need to match the released board geometry.

03 / Material selection

Match the chemistry to exposure and repair access.

Compare the coating chemistries.

We provide a range of conformal coating materials to meet different application needs. The choice of coating material depends on the environmental conditions, the required protection level, and the specific application. Here's a breakdown of the most common types of conformal coatings:

Acrylic Resin (AR)

Economical and easy to apply and repair.
Good moisture and abrasion resistance.
Easily removable with solvents, but less effective against solvents like jet fuel.

Silicone Resin (SR)

Excellent temperature and humidity resistance.
Ideal for environments with high vibrations or extreme temperature variations.
Requires specialized solvents for removal.

Urethane Resin (UR)

High chemical and moisture resistance.
Offers excellent abrasion and solvent resistance.
Often used in aerospace and military applications for superior durability.

Parylene Coating

A vapor-deposited coating offering exceptional moisture and chemical resistance.
Ideal for applications requiring a thin, uniform, and pinhole-free layer of protection.

04 / Surface & application path

Prepare for adhesion, access and controlled coverage.

Match application to access and volume.

The method of applying conformal coating depends on your production needs, PCB design, and coating requirements. We offer the following application methods:

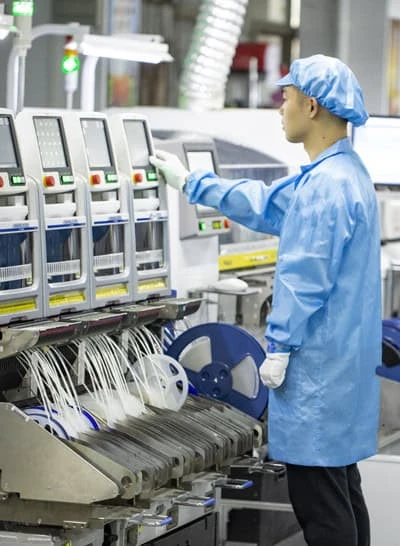

Operators working beside surface-mount assembly and solder-paste inspection equipment
Assembly flow: define when coating, masking and handling enter the released production route.

Manual Spraying

Suitable for low-volume production and prototyping.
Requires careful masking and skilled operators to achieve a consistent coating.

Automated Spraying

Ideal for medium to high-volume production.
Utilizes automated conveyor systems for uniform and consistent coating application.

Selective Coating

Robotic systems apply coating to programmed areas and can reduce masking; agreed keep-outs still require control for the selected material, geometry, wicking behavior, access, and process.
Best suited for high-volume production where precise coating is required without over-coating surrounding components.

Prepare for adhesion and coverage.

Achieving the best results in conformal coating requires careful planning and preparation. Here are the best practices for successful application:

Pre-Cleaning the PCB

Ensure the PCB is free of oils, dust, and contaminants before applying the coating. Proper cleaning enhances adhesion and reduces the risk of defects like dewetting or fisheyes.

Component Spacing

Maintain proper clearance around components to allow the coating to flow evenly and avoid bridging or webs.

Avoid Over-Coating

Coating should be applied only where necessary. Excessive coating can lead to insulation issues or interfere with component functionality.

Account for Robotic Coating Limitations

Consider component height and shape when designing PCBs for robotic coating to ensure proper access for the application equipment.

05 / Independent release controls

Measure thickness. Verify cure. Inspect the boundary.

Control thickness, then verify cure.

Conformal-coated circuit board viewed under ultraviolet light.
Conformal-coated circuit board viewed under ultraviolet light.

Coating Thickness

Set the target dry-film thickness, tolerance, measurement locations, and method from the exact product TDS, assembly drawing, and applicable acceptance requirements. Chemistry, formulation, geometry, and end-use qualification may require a different window.
Use wet-film gauges to control uncured liquid application; verify dry-film thickness at agreed locations with a suitable method and inspect coverage separately under the applicable acceptance criteria.

Drying and Curing Times

Drying times vary depending on the resin type, coating thickness, and curing method:
  • Evaporative Cure: Handling time within an hour, full cure in several days.
  • Moisture Cure: Full cure in several days.
  • Heat Cure: Accelerates polymerization; cure time depends on temperature.
  • UV Cure: Cures rapidly in exposed areas, but shadowed areas may take longer.

06 / Corrective review & approval

Connect defect prevention to the approval worksheet.

Connect the defect to its process cause.

DefectCause and prevention
DewettingCaused by surface contamination (oil, wax, or silicone residues). Prevent this by thoroughly cleaning the PCB before coating.
Cracking/CrazingOccurs due to excessive coating thickness or improper curing temperatures. Follow manufacturer guidelines for curing and thickness control.
Orange PeelResults from uneven atomization or rapid evaporation. Ensure consistent environmental conditions during application.
Air BubblesCan occur from improper mixing or application techniques. Ensure proper equipment maintenance and correct mixing procedures.
FisheyesCaused by contamination like oil or water. Thoroughly clean and inspect PCBs before coating.

Scroll the table to review all columns.

Approve the material, map and release evidence.

Copy these fields into your coating RFQ and fill in the file references and requirements for your assembly. Enter “unknown” where a decision is still open, then name the contact who will resolve it. Confirm the quoted scope, record availability and exclusions with the supplier.

Open item: ____; question to resolve: ____; approval contact: ____; agreed reference/date: ____. Repeat for each unresolved item and attach the agreed references to the RFQ.
Hands placing a populated circuit board into a metallic protective bag
Specify handling, protective packaging and receiving identification for the released lot.
Coating itemCustomer to fillConfirm togetherEvidence requested
Files and scopeGerber/ODB++ file + revision: ____; assembly drawing + revision: ____; coating scope: ____; batch quantity: ____.Drawing revision and scope included in the quote: ____; exclusions: ____.Quotation scope reference: ____.
Exposure and acceptanceExposure: ____; operating temperature: ____; voltage/insulation requirements: ____; repair expectations: ____; acceptance revision/class: ____; material flammability requirement: ____.Applicable requirements: ____; product qualification questions for review: ____.Agreed requirement/reference: ____.
Coating productManufacturer/product, or "selection requested": ____; TDS revision/reference: ____.Exact product and TDS reference for the quote: ____.Product/TDS reference requested: ____.
Coat/no-coat mapHatched map + revision: ____; boundary tolerances: ____; connector/access constraints: ____.Boundary approval: ____; masking/application access questions: ____.Agreed drawing/masking reference requested: ____.
Dry-film thicknessTarget/tolerance reference: ____; measurement locations: ____; board/coupon and method proposed, or "unknown": ____.Dry-film locations and method: ____; board or representative coupon: ____.Dry-film results and location/reference requested: ____.
Incoming condition, cure and coverageCleanliness/moisture requirements: ____; cure requirement/reference: ____; coverage/defect criteria reference: ____.Incoming controls: ____; cure verification: ____; separate coverage inspection criteria: ____.Cure evidence requested: ____; coverage evidence requested: ____.
Sampling and release recordsSampling/acceptance requirements: ____; records and format requested: ____.Sample unit and acceptance sampling: ____; record availability and exclusions: ____.Sampling/inspection/release records requested: ____.
Quote conditionsRequested delivery date: ____; material availability question: ____; setup/fixture and rework questions: ____.Material, setup, fixtures, cure, rework and records included: ____; delivery conditions: ____.Quotation inclusions/exclusions and delivery conditions requested: ____.

Scroll the table to review all columns.

ENGINEERING REFERENCE

Additional coating benefits and assembly-service notes

Review the protection the product needs.
Conformal coating enhances the durability of PCBs by shielding them from various environmental hazards. The application of this protective layer can increase the operational lifespan and reliability of your PCBs. Here are some of the key benefits of conformal coating:

Moisture Resistance

Conformal coatings help prevent moisture-related issues, such as short circuits and corrosion, which are common causes of PCB failure.

Corrosion Protection

Exposure to chemicals and saline environments can cause severe corrosion, leading to functional failure. Conformal coating acts as a barrier, preventing corrosion from damaging your PCBs.

Temperature Resistance

Coating materials such as silicone and urethane provide excellent protection in high-temperature environments, ensuring the longevity of your products in challenging conditions.

Chemical and Abrasion Resistance

Conformal coatings protect against exposure to harsh chemicals, solvents, and abrasion, making them ideal for industrial and automotive applications.

Enhanced Reliability

By preventing environmental damage, conformal coating significantly improves the long-term reliability and performance of your products.
Integrate protection with the assembly route.

Expertise in PCB Assembly and Conformal Coating

With years of experience in PCB manufacturing and assembly, APTPCB ensures high-quality conformal coating services tailored to your specific product requirements.

High-Volume Production Capability

We offer scalable conformal coating services, from low-volume prototypes to high-volume mass production, without compromising quality.

Comprehensive Protection

Our conformal coating solutions are designed to meet the demands of a wide range of industries, including consumer electronics, automotive, aerospace, and medical devices.

Precision and Quality Control

We adhere to strict quality standards to ensure uniform coating, proper adhesion, and reliable protection for your PCBs.
Review the complete protection scope.

PCB Conformal Coating Services – Protect Your Circuit Boards | APTPCB

Conformal coating provides effective protection for PCBs against environmental factors like moisture, dust, and chemicals, extending their lifespan and improving reliability. At APTPCB, we offer high-quality conformal coating services tailored to your specific needs, ensuring your PCBs are well-protected for long-term performance. Whether you're in consumer electronics, automotive, or industrial applications, our team is here to deliver reliable and cost-effective solutions.

Contact Us

For more information or to request a quote for our PCB manufacturing and assembly services, as well as our conformal coating, potting, sealing, and waterproofing solutions, please get in touch with the APTPCB team. While our primary expertise lies in PCB manufacturing and assembly, we also offer a range of complementary services to ensure your products are fully protected and optimized for performance and longevity.

Let us help you find the best solution for your specific needs, ensuring high-quality results every time.

PRACTICAL QUESTIONS

Before you release the work.

How do I choose a coating material?
Match the environment: acrylic for cost-effective protection, silicone for thermal extremes or vibration, urethane for solvents and moisture, and parylene when you need a pinhole-free vapor-deposited barrier.
What thickness do you apply and how is it verified?
Thickness is product- and drawing-specific. Agree the dry-film target, tolerance, measurement locations, method, coverage criteria, and sampling plan; a wet-film gauge controls uncured liquid and does not by itself verify final dry-film thickness or coverage.
Which application methods are available?
Manual spray can suit prototypes and low volume, while automated or robotic selective application can improve repeatability and reduce masking for volume. Final masking and keep-out controls depend on the material, geometry, wicking, access, and boundary tolerance.
How long does curing take?
Cure time depends on chemistry and thickness: evaporative and moisture cures run hours to days, while heat or UV cures accelerate polymerization where exposed.
How do you prevent common coating defects?
We pre-clean to avoid dewetting or fisheyes, control thickness and temperature to prevent cracking, stabilize atomization to avoid orange peel, and maintain mixing and cleanliness to eliminate bubbles or contamination.
Conformal coating vs. potting: when should I step up to a potted circuit board?
Consider potting when the application needs bulk encapsulation or mechanical support and its added mass, cure stress, heat-flow changes and repair limitations are acceptable. Qualify the selected resin, fill geometry and complete assembly for the actual exposure. Potting alone does not establish IP67/IP68 or permit reduced high-voltage creepage.
Does conformal coating make a PCB waterproof or give it an IP rating?
IEC 60529 classifies protection provided by enclosures. Conformal coating may help protect surfaces against moisture and contamination, but connectors, seals, cables and other interfaces remain part of the complete product design. A claimed IP rating requires testing the assembled enclosure under the applicable conditions.
Can conformal coating be removed for rework, and how should keep-out zones be specified?
Removal depends on the exact resin, component compatibility and approved stripping method. Identify coated and uncoated regions on a dedicated drawing layer, including connector, test-point, optical and sensor exclusions. Agree boundary tolerance and clearance with the applicator for the selected chemistry, wicking behavior, masking and access; there is no universal keep-out distance.

ENGINEERING & PRODUCTION REVIEW

Review the coating map and release plan.

Provide the assembly geometry and the protection the product must achieve.

  • Assembly drawing and hatched coat/no-coat map with tolerances
  • Exact exposure, temperature and insulation requirements
  • Coating product/TDS or material selection request
  • Thickness, cure, coverage and sampling evidence
