Ground Power Pcb: Manufacturing Specs, Design Rules, and Troubleshooting Guide

Ground Power PCB design and manufacturing require strict adherence to high-voltage safety standards and thermal management protocols, far exceeding standard consumer electronics requirements. Whether used in aviation Ground Power Units (GPU), marine shore power converters, or rail traction substations, these boards must sustain high current loads while resisting harsh environmental stressors. APTPCB (APTPCB PCB Factory) specializes in fabricating these ruggedized power boards, ensuring compliance with IPC Class 3 reliability standards for critical infrastructure.

Ground Power PCB quick answer (30 seconds)

For engineers specifying a Ground Power PCB, success depends on managing current density, heat dissipation, and dielectric breakdown risks.

Copper Weight: Standard power layers typically require 3 oz to 10 oz heavy copper to handle currents exceeding 50A without excessive voltage drop.
Dielectric Material: Use High-Tg FR4 (Tg > 170°C) or Metal Core (MCPCB) substrates to maintain mechanical stability under thermal cycling.
Clearance Standards: Strictly follow IPC-2221B voltage clearance rules; high-voltage ground power systems (400Hz, 115V/200V AC) need expanded creepage distances.
Surface Finish: Prefer ENIG or Hard Gold for contact reliability in outdoor connectors; HASL is often insufficient for fine-pitch control components on the same board.
Validation: Mandatory Hi-Pot (High Potential) Testing and Impedance Control verification are required to prevent arcing during operation.
Environmental Protection: Conformal coating (acrylic or silicone) is non-negotiable for boards exposed to airfield or dockside humidity and salinity.

When Ground Power PCB applies (and when it doesn’t)

Understanding the operational environment is the first step in designing a robust power distribution system.

When to use specialized Ground Power PCB technology:

Aviation Ground Support: Inside 400Hz GPUs supplying external power to parked aircraft.
Shore Power Systems: High-voltage connection boxes converting grid power for docked marine vessels (cold ironing).
Airfield Ground Lighting: Constant Current Regulator (CCR) control boards managing runway lighting circuits.
Rail Traction Power: Wayside controllers and rectifiers for train power distribution.
Heavy Industrial Charging: Automated Guided Vehicle (AGV) charging stations requiring high-current docking.

When standard PCBs are sufficient (Ground Power PCB is overkill):

Low-Voltage Logic Only: If the board only handles 5V/3.3V signals and is physically isolated from the power stage.
Indoor Consumer Electronics: Standard USB chargers or domestic power supplies do not need the ruggedization of ground support equipment.
Short-Lifecycle Prototypes: If the device is for a controlled lab bench test at low currents (<5A).
Non-Critical Signage: Simple LED displays not connected to high-voltage infrastructure grids.

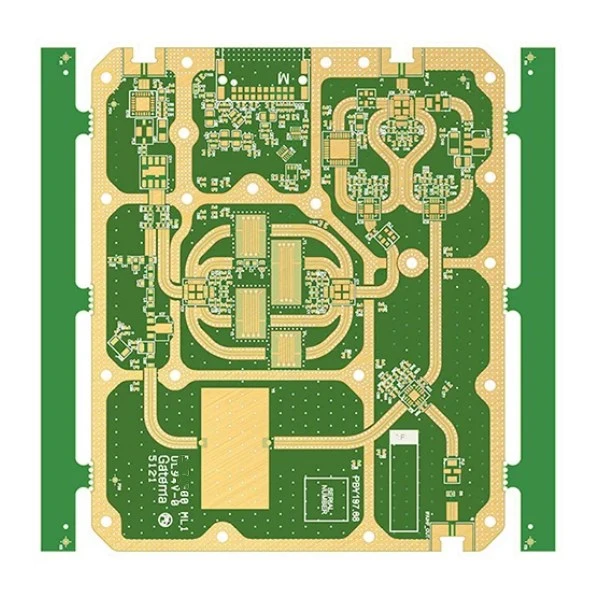

Ground Power PCB rules and specifications (key parameters and limits)

To prevent catastrophic field failures, Ground Power PCB designs must adhere to specific manufacturing parameters.

Rule / Parameter	Recommended Value / Range	Why it matters	How to verify	If ignored
Copper Weight	3 oz – 10 oz (Outer/Inner)	Reduces resistance and heat generation at high currents (e.g., >50A).	Microsection analysis (Cross-section).	Overheating, trace delamination, fire risk.
Trace Width	Calculated via IPC-2152	Ensures trace can carry current without exceeding temperature rise limits (+10°C to +20°C).	Design Rule Check (DRC) & Thermal simulation.	Fused traces (open circuit) under load.
Creepage Distance	> 2.5mm (per kV, varies by pollution degree)	Prevents surface arcing between high-voltage nodes and ground.	CAD spacing rules & Hi-Pot testing.	Carbonization, short circuits, arcing.
Clearance (Air Gap)	> 1.5mm (for >100V peaks)	Prevents dielectric breakdown through air.	3D CAD clearance check.	Flashover, equipment damage.
Material Tg	> 170°C (High Tg)	Prevents barrel cracking and pad lifting during thermal stress.	DSC (Differential Scanning Calorimetry).	Intermittent connections, board warping.
CTI Value	PLC 0 or 1 (>400V)	Resists electrical tracking across the substrate surface in humid conditions.	Material datasheet certification.	High-voltage tracking failure over time.
Via Current	Multiple stitched vias (0.3mm - 0.5mm)	Single vias cannot handle high current; arrays reduce inductance and resistance.	Current density simulation.	Via burnout, high impedance ground paths.
Solder Mask	High-voltage specific (e.g., Taiyo)	Standard masks may break down under sustained high voltage.	Dielectric strength test.	Mask breakdown, exposed copper corrosion.
Thermal Relief	Direct connect (no spokes) for power pads	Spokes increase resistance; solid connections aid heat spreading.	Gerber visual inspection.	Hotspots at component terminals.
Plating Thickness	> 25µm (1 mil) in hole wall	Ensures barrel integrity during high-current thermal expansion.	Cross-section report.	Corner cracking, open vias.

Ground Power PCB implementation steps (process checkpoints)

Moving from a schematic to a physical Ground Power PCB requires a process focused on power integrity and safety.

Load Analysis & Stackup Definition:
- Action: Define maximum continuous and peak currents for all rails.
- Parameter: Select Heavy Copper PCB stackup (e.g., 4-layer, 3oz inner, 4oz outer).
- Check: Confirm prepreg thickness provides adequate dielectric isolation for the operating voltage.
Component Placement & Partitioning:
- Action: Physically separate High Voltage (HV) AC sections from Low Voltage (LV) DC control logic.
- Parameter: Minimum isolation gap (e.g., 5mm isolation barrier).
- Check: Verify no components bridge the isolation gap unless rated (e.g., optocouplers).
Power Plane & Trace Routing:
- Action: Route high-current paths using polygons, not thin traces. Use busbar embeds if copper weight is insufficient.
- Parameter: Current density < 30A/mm² (conservative rule).
- Check: Run IR Drop simulation to ensure voltage drop is < 2%.
Thermal Management Design:
- Action: Place thermal vias under hot components (MOSFETs, Rectifiers) connecting to bottom ground planes.
- Parameter: Via pitch 1.0mm - 1.2mm.
- Check: Verify heat sink attachment points are electrically isolated if necessary.
Solder Mask & Legend Design:
- Action: Remove solder mask from high-current traces to allow solder tinning (increasing current capacity).
- Parameter: Solder mask expansion 0.1mm.
- Check: Ensure high-voltage warnings are printed on the silkscreen.
Fabrication & Layer Bonding:
- Action: Lamination of heavy copper layers requires high pressure to fill gaps between thick traces.
- Parameter: Resin content > 50% in prepreg.
- Check: Inspect for voids or resin starvation in cross-sections.
Electrical & Safety Testing:
- Action: Perform 100% Netlist testing and Hi-Pot testing.
- Parameter: Test voltage = 2x Rated Voltage + 1000V.
- Check: Pass/Fail report showing no leakage current > 1mA.
Final Coating & Assembly:
- Action: Apply conformal coating for moisture protection.
- Parameter: Coating thickness 25-75µm.
- Check: UV inspection to ensure full coverage of pins and pads.

Ground Power PCB troubleshooting (failure modes and fixes)

Failures in Ground Power PCBs often result in smoke or arcing. Systematic troubleshooting is required to identify the root cause.

Symptom: Carbonized tracks or PCB burning.
- Cause: Dielectric breakdown due to insufficient creepage or pollution (dust/moisture).
- Check: Measure physical distance between burnt nodes; check for conductive debris.
- Fix: Redesign with wider isolation slots (milling) or apply potting compound.
- Prevention: Use CTI > 600 material and conformal coating.
Symptom: Traces lifting off the board (Delamination).
- Cause: Excessive heat causing resin to lose adhesion, or current exceeding copper capacity.
- Check: Verify current load vs. trace width; check operating temperature.
- Fix: Increase copper weight (e.g., move from 2oz to 4oz) or widen traces.
- Prevention: Use High Thermal PCB materials with higher Tg and Td (Decomposition Temp).
Symptom: Intermittent power loss under vibration.
- Cause: Cracked solder joints on heavy components (inductors/transformers) or barrel cracks in vias.
- Check: X-ray inspection of joints; microsection of vias.
- Fix: Add mechanical support (adhesive/brackets) for heavy parts; increase plating thickness.
- Prevention: Use flexible resin systems or Class 3 plating specs.
Symptom: Logic resets when power switches.
- Cause: Ground bounce or EMI coupling from high-current switching.
- Check: Oscilloscope probe on logic ground during load switching.
- Fix: Improve ground plane separation (star ground); add decoupling capacitors.
- Prevention: Strict partitioning of Analog/Power/Digital grounds in layout.
Symptom: Solder mask blistering over thick traces.
- Cause: Outgassing from laminate or poor adhesion to thick copper steps.
- Check: Visual inspection after reflow.
- Fix: Use LPI (Liquid Photoimageable) mask specifically formulated for heavy copper.
- Prevention: Ensure proper baking of PCBs before assembly to remove moisture.
Symptom: High resistance reading on power rails.
- Cause: Neck-down in traces or insufficient via count.
- Check: Review Gerber files for accidental trace thinning near pads.
- Fix: Add jumper wires (bodges) for prototypes; revise layout for production.
- Prevention: Run comprehensive DRC with minimum width constraints.

How to choose Ground Power PCB (design decisions and trade-offs)

Selecting the right architecture for a Ground Power PCB involves balancing thermal performance, cost, and mechanical constraints.

Heavy Copper vs. Busbar Embedded:

Heavy Copper (3-10oz): Best for complex routing where power needs to go to many locations. It is integrated into the board, saving assembly time. Trade-off: Higher etching cost and limits on fine-pitch components on the same layer.
Busbar Embedded/External: Best for extremely high currents (>200A) in a straight line. Trade-off: Requires manual assembly or complex multi-step lamination; increases mechanical height.

FR4 vs. Metal Core (MCPCB):

FR4 (High Tg): Standard choice for multi-layer designs requiring complex signal routing alongside power. Trade-off: Poor thermal conductivity (~0.3 W/mK) requires thermal vias.
Metal Core PCB: Excellent for LED lighting (Ground Lighting PCB) or power modules where heat dissipation is the priority. Trade-off: Typically limited to 1 or 2 layers; difficult to route complex control logic.

Rigid vs. Rigid-Flex:

Rigid: Most robust and cost-effective for stationary Ground Power Units.
Rigid-Flex: Useful in tight enclosures where vibration is an issue (e.g., inside a connector head). Trade-off: Significantly higher cost and manufacturing complexity.

Surface Finish Selection:

HASL (Lead-Free): Good for power pads, but uneven surface can be an issue for smaller components.
ENIG: Flat surface, good for fine pitch, but thin gold layer is not ideal for high-wear contacts (unless Hard Gold is used for edge connectors).
Immersion Silver: Good conductivity, but risks tarnishing in sulfur-rich environments (like airports or marine ports).

Ground Power PCB FAQ (cost, lead time, common defects, acceptance criteria, Design for Manufacturability (DFM) files)

1. What is the typical lead time for a Ground Power PCB with 4oz copper? Standard lead time is 10–15 working days. Heavy copper requires extended etching and lamination cycles compared to standard 1oz boards. Quick-turn options (5–7 days) are available but depend on layer count and stackup complexity.

2. How does copper weight impact the cost of Ground Power PCBs? Cost increases significantly with copper weight due to raw material costs and slower processing (etching/plating). A 4oz board can cost 2–3x more than a 1oz board. However, it eliminates the need for external wiring or busbars, often reducing total system cost.

3. What are the acceptance criteria for Ground Power PCBs? We recommend IPC-A-600 Class 3 for ground support equipment. This standard allows for minimal defects and requires stricter annular rings and plating thickness, ensuring reliability in harsh field operations.

4. Can you manufacture Ground Power PCBs with blind and buried vias? Yes, but use caution. Blind/buried vias in heavy copper boards increase the risk of resin voids and connection failures. Through-hole vias are preferred for high-current reliability unless density strictly demands HDI techniques.

5. What files are needed for a DFM review of a Ground Power PCB? Submit Gerber RS-274X files, a drill file, and a detailed fabrication drawing specifying copper weight per layer, dielectric thickness, and special testing requirements (e.g., Hi-Pot voltage levels).

6. How do you test for dielectric breakdown in Ground Power PCBs? We perform electrical safety testing using a Hi-Pot tester, applying high voltage between isolated nets to ensure no current leakage occurs. This validates the material quality and clearance distances.

7. What is the best material for Shore Power PCBs exposed to salt spray? Use a High-Tg FR4 with a high CTI rating to resist tracking. Crucially, the finished PCBA must be protected with a high-quality conformal coating (Type AR or SR) or potting compound to seal out moisture and salt.

8. Why is my Ground Power PCB overheating despite using wide traces? Trace width is only one factor. Check the copper thickness (is it actually 2oz or 1oz plated up?), the ambient temperature inside the enclosure, and airflow. Also, verify that thermal reliefs aren't choking the current at the pad connection.

9. Do Ground Lighting PCBs require special certifications? Yes, airfield ground lighting often requires compliance with FAA or ICAO standards. The PCBs themselves must meet UL 94 V-0 flammability ratings and often require specific CTI values to prevent arcing on runways.

10. Can APTPCB assist with the layout of high-current paths? Yes. While we primarily manufacture, our engineering team provides detailed DFM feedback. We can suggest trace widening, via stitching patterns, and copper balancing to optimize your design for manufacturability and performance.

Industrial Control PCB: Explore solutions for automation and heavy machinery control systems.
Heavy Copper PCB Capabilities: Detailed specs on copper weights up to 10oz+ for power applications.
Metal Core PCB (MCPCB): Thermal management solutions for high-power LED and converter modules.
PCB Quality System: Learn about our IPC compliance, UL certifications, and testing protocols.

Ground Power PCB glossary (key terms)

Term	Definition
GPU (Ground Power Unit)	A mobile or fixed power supply used to energize aircraft while parked on the ground (typically 400Hz AC or 28V DC).
Creepage	The shortest distance between two conductive parts measured along the surface of the insulation.
Clearance	The shortest distance between two conductive parts measured through the air.
CTI (Comparative Tracking Index)	A measure of the electrical breakdown (tracking) properties of an insulating material.
Heavy Copper	PCB layers with copper thickness generally greater than 3 oz/ft² (105µm).
Tg (Glass Transition Temp)	The temperature at which the PCB substrate transitions from a hard, glassy state to a soft, rubbery state.
Hi-Pot Test	High Potential test; a safety test to verify the isolation integrity of the PCB under high voltage.
Shore Power	Provision of electrical power to a ship at berth while its main and auxiliary engines are shut down.
Thermal Relief	A spoke pattern connecting a pad to a large copper area to facilitate soldering by reducing heat sinking.
IPC Class 3	The highest IPC performance class, intended for high-reliability products where downtime is not acceptable.

Request a quote for Ground Power PCB (Design for Manufacturability (DFM) review + pricing)

APTPCB provides specialized engineering support for high-power and industrial PCB projects. When you request a quote, our engineers perform a complimentary DFM review to check your heavy copper stackup, isolation distances, and thermal vias against manufacturing capabilities.

To get an accurate quote and DFM report, please provide:

Gerber Files: RS-274X format preferred.
Fabrication Drawing: Specify copper weight (e.g., 4oz), material Tg, and surface finish.
Volume: Prototype quantity vs. production estimates.
Special Requirements: Hi-Pot testing voltage, impedance control, or specific solder mask brands.

Conclusion (next steps)

Designing a reliable Ground Power PCB requires a shift in mindset from standard electronics to heavy industrial engineering. By prioritizing copper weight, strict isolation distances, and thermal management, you ensure your equipment—whether for aviation, rail, or marine sectors—operates safely under load. APTPCB is ready to support your project with high-reliability fabrication processes tailored for critical infrastructure power systems.
