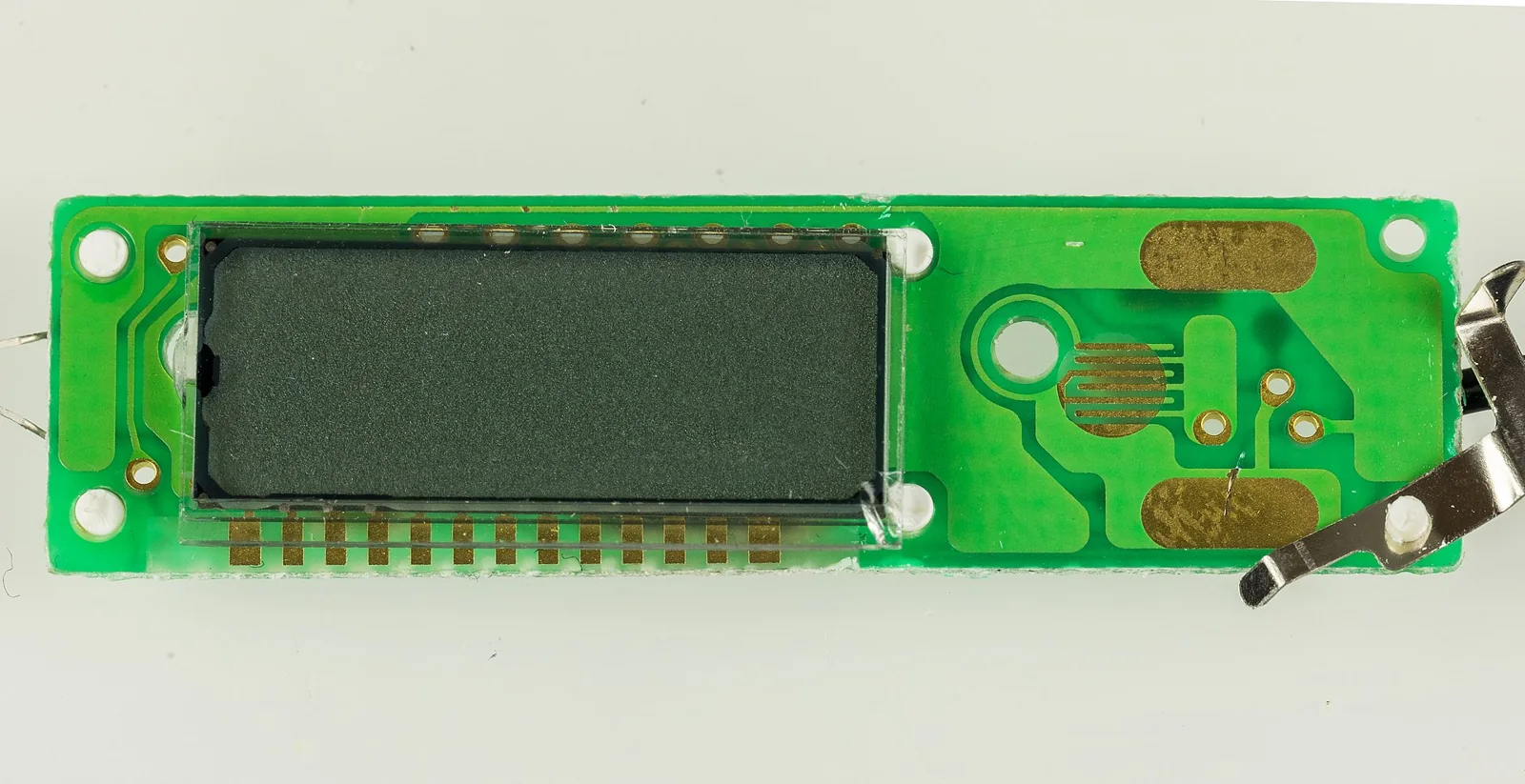

At APTPCB (APTPCB PCB Factory), we understand that manufacturing these boards requires a shift in mindset from "cost-efficiency" to "failure-proofing." The engineering focus moves beyond simple connectivity to managing heat dissipation, ensuring dielectric breakdown voltages are never exceeded, and guaranteeing that the board survives rigorous sterilization cycles.
Highlights
- IPC Class 3 Compliance: Mandatory for life-support systems to ensure continuous performance without downtime.
- Thermal Management: Utilization of heavy copper and high-Tg materials to manage heat generated by power conversion.
- Dielectric Reliability: Strict creepage and clearance rules to prevent arcing in high-voltage power supply units.
- Traceability: Full lot tracking from raw laminate to final assembly is essential for regulatory audits.
The Context: What Makes Life Support Power PCB Challenging
Designing and manufacturing power boards for life support systems involves navigating a complex web of physical and regulatory constraints. The primary challenge is the "zero-failure" requirement. A laptop charger can fail and be replaced; a surgical power supply cannot. This necessitates robust design margins that often conflict with the modern drive for miniaturization.
Engineers must balance high power density with thermal safety. As medical devices become portable (e.g., transport ventilators), the PCB must handle the same power load in a smaller footprint. This concentrates heat, increasing the risk of delamination or solder joint fatigue. Furthermore, these boards often operate in oxygen-rich environments or undergo aggressive chemical cleaning, requiring materials that resist environmental stress cracking and corrosion.
The Core Technologies (What Actually Makes It Work)
To achieve the necessary reliability, Life Support Power PCBs rely on specific manufacturing technologies that go beyond standard FR4 processing.
- Heavy Copper Circuitry: Standard 1oz copper is often insufficient for the current demands of medical power supplies. We frequently employ Heavy Copper PCB technology (3oz to 10oz) to carry high currents with minimal voltage drop and to act as an integrated heat spreader.
- High-Tg Laminates: Standard FR4 softens around 130°C. For life support systems, we use High Tg PCB materials (Tg > 170°C). This ensures the board's Z-axis expansion is controlled during assembly and operation, preventing plated through-hole (PTH) fractures.
- Controlled Dielectrics and Isolation: Power boards often step down mains voltage to safe DC levels. Maintaining precise isolation distances (creepage and clearance) is critical. This often involves routing slots into the PCB to create physical air gaps between high-voltage and low-voltage sections.
- Rigid-Flex Integration: To reduce cabling—which is a common point of failure—designers increasingly use Rigid-Flex PCB structures. This eliminates connectors and improves signal integrity between the power stage and the control logic.
Ecosystem View: Related Boards / Interfaces / Manufacturing Steps
A Life Support Power PCB does not exist in a vacuum; it is the heart of a larger electronic ecosystem.
- The Power Chain: The power PCB receives input (AC mains or battery), conditions it, and distributes it to the Main Control Board (often an HDI board) and Sensor Interfaces. Noise generated by the power PCB must be filtered so it does not corrupt sensitive sensor data monitoring patient vitals.
- Assembly (PCBA) Considerations: The assembly process is as critical as the bare board fabrication. PCBA for medical devices requires strict cleanliness standards. Flux residues must be fully removed to prevent dendritic growth (electrochemical migration) which can cause shorts over time.
- Protection and Coating: After assembly, these boards are almost always treated with PCB Conformal Coating. This protects the circuitry from moisture, saline splashes, and the humid environment of a hospital room.
- Testing Protocols: Beyond standard electrical testing, these boards undergo High Potential (Hi-Pot) testing to verify isolation and burn-in testing to weed out early-life failures.
Comparison: Common Options and What You Gain / Lose
When specifying a Life Support Power PCB, engineers face trade-offs between thermal performance, mechanical robustness, and manufacturability. The choice of material and structure dictates the long-term reliability of the device.
Decision Matrix: Technical Choice → Practical Outcome
| Technical choice | Direct impact |
|---|---|
| Standard FR4 (Tg 135°C) | Low cost, but high risk of barrel cracks and delamination in medical environments. Avoid for Class 3. |
| High-Tg FR4 (Tg 170°C+) | Excellent thermal stability and reliability. The industry standard for life support power systems. |
| Heavy Copper (3oz - 6oz) | Enables high current carrying capacity and heat spreading, but requires wider trace spacing/design rules. |
| Metal Core (IMS/MCPCB) | Superior heat dissipation for power LEDs or MOSFETs, but limited to single or simple double-layer designs. |
Reliability & Performance Pillars (Signal / Power / Thermal / Process Control)
Reliability in life support systems is not an abstract concept; it is the result of specific design and manufacturing pillars.
1. Thermal Management Heat is the enemy of electronics. In power PCBs, localized hotspots can degrade component life. We use thermal vias, heavy copper planes, and sometimes embedded coins to move heat away from sensitive components.
2. Power Integrity The power delivery network (PDN) must be impedance-controlled to prevent voltage droop during load transients. If a ventilator motor kicks in, the logic voltage must remain stable. This requires careful stack-up planning and decoupling strategies.
3. Process Control and Inspection Manufacturing defects are unacceptable. We employ AOI Inspection (Automated Optical Inspection) on every layer of the board, not just the outer layers. For multilayer boards, X-ray inspection checks the registration of internal layers and the quality of BGA solder joints.
| Metric | Standard PCB | Life Support Power PCB (Class 3) |
|---|---|---|
| Annular Ring | Breakout allowed (90 deg) | No breakout allowed; min 2 mil internal |
| Plating Thickness | Class 2 (avg 20µm) | Class 3 (avg 25µm min) |
| Visual Defects | Minor cosmetic allowed | Strict criteria; no exposed copper, no blistering |
| Cleanliness | Standard wash | Ionic contamination testing required |
The Future: Where This Is Going (Materials, Integration, Ai/automation)
The medical electronics industry is moving toward smarter, smaller, and more integrated power solutions. The boundary between the "power board" and the "logic board" is blurring as integration increases.
5-Year Performance Trajectory (Illustrative)
| Performance metric | Today (typical) | 5-year direction | Why it matters |
|---|---|---|---|
| Copper Weight & Density | 2oz - 3oz standard | Variable copper (thick/thin on same layer) | Allows logic and high power on the same layer, reducing board size. |
| Thermal Integration | External heatsinks | Embedded copper coins / fluid cooling channels | Manages higher power density in portable medical devices. |
| Smart Monitoring | Passive feedback | Digital power management (PMBus) | Predictive maintenance; alerts before a power rail fails. |
Request a Quote / DFM Review for Life Support Power PCB (What to Send)
When requesting a quote for life-critical applications, clarity is safety. APTPCB engineers review your data not just for manufacturability, but for reliability risks. To get the most accurate DFM feedback and pricing, please include the following:
- Gerber Files: RS-274X or ODB++ format.
- Fabrication Drawing: Must specify IPC Class 3 requirements explicitly.
- Material Spec: Specify High-Tg (e.g., Tg 170, Tg 180) and dielectric brand if critical (e.g., Isola, Panasonic).
- Copper Weight: Clearly define finished copper weight for inner and outer layers.
- Stack-up: Detailed layer buildup including impedance requirements.
- Surface Finish: ENIG or Immersion Silver are preferred for planarity; HASL is generally avoided for fine pitch.
- Testing Requirements: Specify Hi-Pot parameters, ionic cleanliness limits, and any specific cross-sectioning requirements.
- Volume & Lead Time: Prototype quantity vs. production ramp-up schedule.
Conclusion
A Life Support Power PCB is more than a component; it is a foundational element of patient safety. The design choices made regarding copper weight, material Tg, and layout isolation directly influence the reliability of the medical device in the field. There is no room for "good enough" when a system must sustain life.
By partnering with an experienced manufacturer like APTPCB, you ensure that your power distribution networks are built to the highest standards of quality and durability. From DFM review to final PCB Quality inspection, we help you deliver medical devices that doctors and patients can trust implicitly.
