In the world of hardware development, a quick turn pcb prototype is the critical bridge between a digital design and a physical reality. It is defined as the fabrication of a small batch of printed circuit boards (usually 5–50 units) within an accelerated timeframe—typically 24 hours to 5 days—specifically for functional verification, fit checks, and debugging. Unlike standard production, which optimizes for cost and panel utilization, quick turn manufacturing optimizes for speed and agility, often bypassing standard queues to meet tight R&D deadlines.
However, "quick turn" does not mean "cutting corners." As Senior CAM Engineers at APTPCB, we often see designs fail not because the physics were wrong, but because the data wasn't ready for high-speed processing. A successful fast-turn build requires strict adherence to standard stackups, clear documentation, and design-for-manufacturing (DFM) compliance.
Quick Answer
If you need a quick turn pcb prototype in 24–48 hours, you must design within the "Safe Zone" of manufacturing capabilities to avoid Engineering Questions (EQs) that halt production.
- Standardize Materials: Use FR4 TG150/170 with standard copper weights (1oz). Exotic materials (Rogers, Polyimide) often require lead times that negate quick turn speed.
- Layer Count: Keep it under 10 layers for <48h turns. Lamination cycles are the primary bottleneck.
- Trace/Space: Stick to ≥4mil/4mil. Going below 3.5mil increases AOI (Automated Optical Inspection) time and yield risk.
- Drill Specs: Minimum mechanical drill 0.2mm (8mil). Laser microvias add significant processing time (HDI).
- Surface Finish: ENIG or HASL are the fastest. Hard Gold or ENEPIG adds complex plating steps.
- Pitfall: Missing Netlists (IPC-356). Without a netlist, we cannot verify your Gerber data against your schematic intent automatically, forcing a manual hold.
- Verification: Always run a DFM check before submission. A single ambiguous drill file can delay a 24-hour job by a day.
Highlights
- Speed vs. Customization: The fastest turns (24h) rely on "House Stackups"—pre-defined layer builds using materials currently in stock.
- The "EQ" Killer: 60% of quick turn delays are caused by ambiguous engineering data (e.g., missing drill charts or unclear outline layers).
- Via Tech Matters: Through-hole vias are fast. Blind and buried vias require sequential lamination, often doubling the production time.
- Testing is Mandatory: Even for prototypes, 100% E-Test (Flying Probe) is essential to distinguish between a bad design and a bad board.
- Transition to Production: A good prototype design considers mass production PCB manufacturing feasibility from day one.

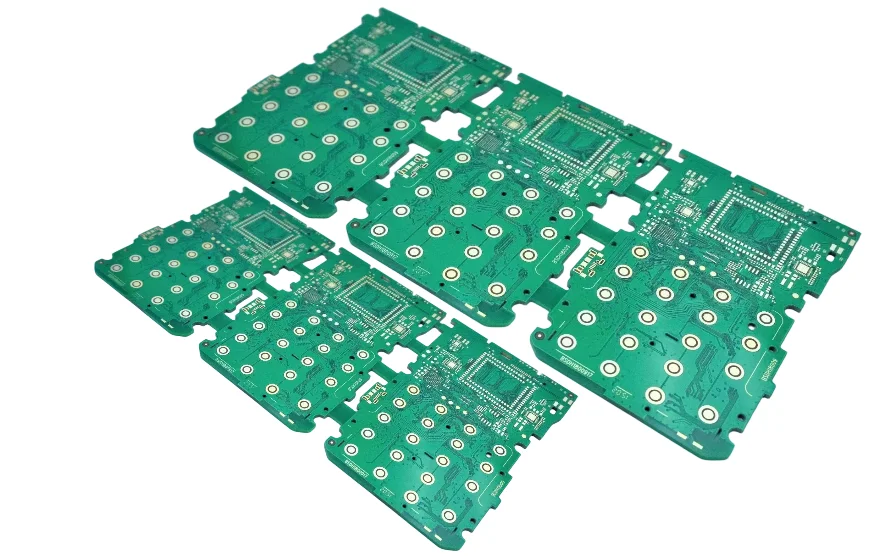

Quick Turn PCB Prototype: Definition and Scope
A quick turn pcb prototype is distinct from standard production in its operational workflow. In a factory like APTPCB, quick turn jobs are routed through a dedicated "Fast Lane." This involves prioritized CAM engineering, dedicated lamination presses, and reserved capacity on drilling machines.
The scope of a quick turn project usually involves:
- Quantity: 1 to 100 panels.
- Lead Time: 24 hours (2-layer), 48 hours (4-6 layer), up to 5 days for complex HDI.
- Intent: Functional validation (Does it power up?), Signal Integrity testing, or Mechanical fit checks.
The primary trade-off in quick turn is cost vs. time. To achieve speed, manufacturers may under-utilize panels (running a press with only your job) or use expedited shipping for materials. Understanding the levers that control this trade-off is vital for engineers.
Tech / Decision Lever → Practical Impact
| Decision Lever / Spec | Practical Impact (Yield/Cost/Reliability) |
|---|---|
| Material Selection (Stock vs. Custom) | High Impact: Using "House Stock" (e.g., FR4 TG150) allows immediate fabrication. Custom dielectrics can add 3-10 days for material procurement. |
| Via Structure (Through vs. Blind/Buried) | Time Impact: Blind/Buried vias require sequential lamination cycles. Each lamination adds ~24 hours to the minimum lead time. |
| Surface Finish (ENIG vs. Hard Gold) | Process Impact: ENIG is a standard batch process. Hard Gold requires selective plating and taping, increasing labor and time by 30%. |
| Silkscreen/Legend (White/Black vs. Colors) | Minor Impact: Standard white ink is cured in continuous ovens. Custom colors may require batch curing, adding slight delays. |

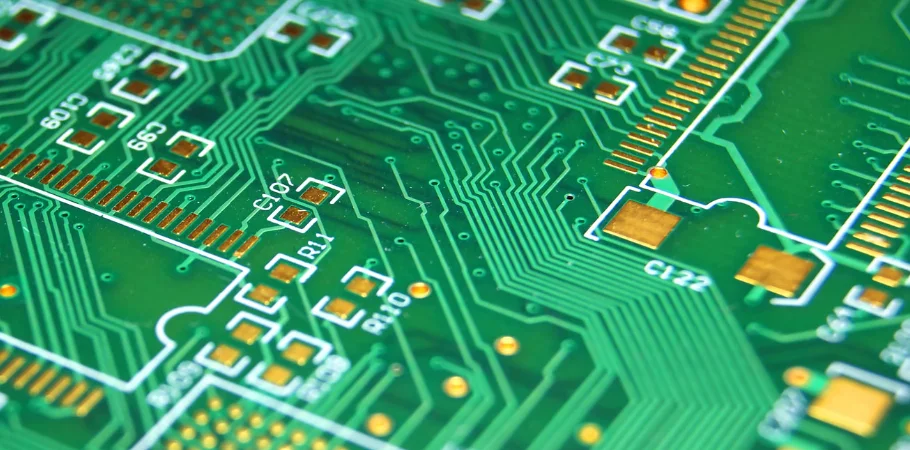

Quick Turn PCB Prototype Rules and Specifications
To guarantee a 24-48 hour turnaround, your design must adhere to robust specifications that minimize manufacturing risk. Pushing the limits (e.g., 3mil trace) is possible but increases the chance of yield loss, which necessitates a re-spin and destroys the schedule.
Refer to our DFM Guidelines for a comprehensive list, but here are the critical rules for speed:
| Rule | Recommended Value | Why it matters | How to verify |
|---|---|---|---|
| Min Trace / Space | 4mil / 4mil (0.1mm) | Tighter spacing requires slower etching speeds and stricter AOI sensitivity, risking false calls or shorts. | Run DRC in CAD with 4mil constraints. |
| Min Mechanical Drill | 0.2mm (8mil) | Smaller drills break more often, requiring drill bit changes and slower spindle speeds. | Check Drill Table in Gerber output. |
| Annular Ring | +4mil (0.1mm) over hole | Compensates for drill wander and layer registration tolerance. Prevents breakout. | Visual check of pad vs. hole size. |
| Solder Mask Dam | 3mil (0.075mm) | Ensures mask adhesion between pads (e.g., QFP/IC). Prevents solder bridging. | Check mask expansion settings. |
| Copper to Edge | 10mil (0.25mm) | Prevents copper burrs during routing/profiling which can cause shorts. | DRC check "Board Outline Clearance". |
| Aspect Ratio | 8:1 | Ensures reliable plating in the barrel without advanced pulse plating techniques. | Divide Board Thickness by Smallest Drill Diameter. |
Quick Turn PCB Prototype Implementation Steps
Executing a quick turn build is a relay race between the designer and the fab house. Here is the optimal workflow to ensure the baton doesn't get dropped.
Implementation Process
Step-by-step execution guide
Export data in Gerber X2 or ODB++ format. These formats include attribute data (like "via" vs "pad") that speeds up CAM processing. Ensure the IPC-356 Netlist is included to allow automated electrical logic verification.
Select a standard "House Stackup" from your vendor. For APTPCB, this usually means FR4 TG150, 1.6mm thickness, with 1oz copper. Confirming stock availability before ordering prevents "Material on Order" delays.
Submit files for a DFM review. The CAM engineer will flag issues (EQs). Respond to these immediately. A 2-hour delay in answering an EQ can result in missing the daily lamination cutoff, adding 24 hours to the lead time.
The board enters the "Fast Lane." Inner layers are etched, laminated, drilled, and plated. Finally, Flying Probe testing verifies continuity against the Netlist. Boards are then routed, inspected, and shipped via express courier.
Quick Turn PCB Prototype Troubleshooting
Even with the best intentions, prototypes can fail. Here are common issues seen in quick turn batches and how to address them.
1. Delamination or Blistering
- Cause: Moisture trapped in the board or improper lamination profiles due to rushing the press cycle.
- Fix: Ensure the fab house bakes materials before lamination. Use high-quality Isola PCB or equivalent materials that are robust against thermal shock.
2. Solderability Issues (Black Pad)
- Cause: Oxidation of the copper before ENIG plating, or aggressive etching.
- Fix: Specify a fresh surface finish. If using OSP, ensure boards are vacuum sealed immediately. For prototypes, HASL is often more robust than ENIG if fine pitch isn't a concern.
3. Misalignment of Layers
- Cause: Material shrinkage during lamination not compensated for in CAM.
- Fix: Ensure the manufacturer uses X-Ray drilling for reference holes after lamination. Add fiducials to your panel design to aid in alignment during assembly.

Supplier Qualification Checklist: How to Vet Your Fab
Not all "Quick Turn" shops are created equal. Some are brokers who farm out work; others are true manufacturers like APTPCB. Use this checklist to vet your partner:
- Do you have 24/7 CAM engineering support? (Crucial for resolving EQs across time zones).
- Is lamination done in-house? (Outsourced lamination adds days).
- What is your cutoff time for same-day start? (Usually 10 AM or 2 PM local time).
- Do you stock high-frequency materials? (e.g., Rogers PCB series).
- Do you perform 100% Netlist testing on prototypes? (Never accept "batch testing" for prototypes).
- Can you provide a stackup report within 2 hours?
- Do you offer Quick Turn PCB specific pricing or is it a surcharge on standard?
Glossary
EQ (Engineering Question): A formal query from the manufacturer to the designer regarding discrepancies in the data (e.g., "Drill count does not match drill map"). EQs place the job "On Hold."
WIP (Work In Progress): The status of the PCB as it moves through various manufacturing stages (Etching, Drilling, Plating).
Netlist (IPC-356): A file describing the electrical connectivity of the board. It tells the machine "Pin A connects to Pin B." It is the "truth" used to verify the physical copper.
Stackup: The arrangement of copper layers and insulating material (prepreg/core) in the Z-axis. See PCB Stack Up for details.
Fiducial: A copper marker on the board used by assembly machines (pick-and-place) and AOI machines to align the board optically.
6 Essential Rules for Quick Turn PCB Prototype (Cheat Sheet)
| Rule / Guideline | Why It Matters (Physics/Cost) | Target Value / Action |
|---|---|---|
| Standard Material | Exotic materials require ordering time. Stock materials allow immediate start. | FR4 TG150/170 (Stock) |
| Trace/Space Width | Below 3.5mil requires specialized etching and slower inspection. | ≥ 4mil / 4mil |
| Via Technology | Blind/Buried vias require sequential lamination (multiple press cycles). | Through-Hole Only (Preferred) |
| Surface Finish | Complex finishes (Hard Gold) take longer. ENIG is flat and fast. | ENIG or HASL |
| Data Format | Ambiguous data causes Engineering Holds (EQs). | Gerber X2 + IPC-356 Netlist |
| Test Points | Flying probe needs access. Tented vias cannot be probed easily. | Exposed Test Pads |
FAQ
Q: What is the absolute fastest turnaround time for a PCB prototype?
A: For a standard 2-layer board, 24 hours is the industry standard "fastest" reliable turn. Some facilities can push 12 hours (Same Day) if data is received early morning, but this carries a high premium. 4-6 layer boards typically require 48 hours due to the lamination and curing cycle.
Q: Can I order HDI (High Density Interconnect) boards as quick turn?
A: Yes, but "quick" is relative. While a standard board takes 24-48h, an HDI PCB with laser microvias usually takes 3-5 days minimum. The laser drilling and additional plating cycles for microvias physically take more time and cannot be rushed without compromising reliability.
Q: Does quick turn manufacturing affect the quality of the PCB?
A: It should not. In a reputable factory, quick turn boards undergo the same IPC Class 2 or Class 3 inspections as production boards. The speed comes from priority scheduling and dedicated equipment, not from skipping quality control steps like E-Test or AOI.
Q: How does the cost of quick turn compare to standard lead time?
A: Quick turn premiums can range from 50% to 200% higher than standard lead times. This covers the cost of disrupting the standard production flow, dedicated machine setup, and expedited shipping.
Q: Can I transition a quick turn prototype directly to mass production?
A: Not always. Prototypes are often built on "pool" panels or with materials available in stock. For Mass Production, we optimize the panel utilization and might suggest a more cost-effective material or stackup. Always perform a DFM review specifically for volume production after the prototype phase.
Q: What files do I need to send for a quick turn quote?
A: You need Gerber files (RS-274X or X2), a Drill file (Excellon), an IPC-356 Netlist, and a simple text file or PDF specifying the stackup, thickness, copper weight, color, and quantity.
Request a Quote / DFM Review for Quick Turn PCB Prototype
Ready to validate your design? Send your data to APTPCB for an immediate review. To ensure the fastest processing, please include:
- Gerber Files: All layers clearly named.
- Drill File: With tool list embedded.
- Stackup Specs: Total thickness (e.g., 1.6mm) and copper weight (e.g., 1oz).
- Netlist: For automated verification.
- Quantity & Lead Time: e.g., "10 pcs, 24-hour turn."
Visit our Quote Page to upload your files securely.
Conclusion
Mastering the quick turn pcb prototype process is about managing variables. By sticking to standard materials, providing clear data, and understanding the manufacturing levers that drive time and cost, you can reliably get boards on your bench in days, not weeks. At APTPCB, we treat every prototype as a potential mass production product, ensuring that speed never compromises the engineering integrity of your design.
