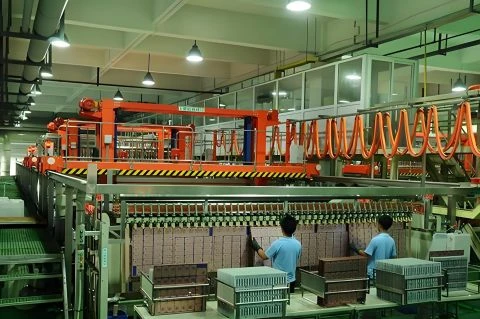

Soldermask Process Window: A Practical End-to-End Guide (from Basics to Production)

The soldermask process window defines the allowable manufacturing tolerance range for applying, imaging, and developing the protective coating on a Printed Circuit Board (PCB). It represents the critical balance between registration accuracy, feature resolution (such as solder dams), and chemical resistance, ensuring that pads remain exposed for soldering while adjacent traces remain insulated. Mastering this window is essential for preventing solder bridges in fine-pitch components and ensuring long-term electrical reliability.

Key Takeaways

Definition: The process window is the delta between the maximum allowable misalignment and the minimum required feature size (dam width) that a manufacturer can reliably produce.
Critical Metric: The standard Solder Mask Expansion (SME) is typically 2 to 3 mils (50–75 µm) larger than the copper pad to account for registration drift.
Minimum Dam: For green Liquid Photoimageable (LPI) mask, the minimum reliable solder dam is generally 4 mils (100 µm); falling below this risks dam breakage.
Color Impact: Black and white soldermasks require tighter process controls and often necessitate larger clearances (typically +1 mil) due to difficulty in light polymerization.
Validation Tip: Use a cross-section analysis to verify that the soldermask thickness over the knee of the copper trace is at least 0.3 mils (7–8 µm).
Etch Compensation: Proper etch compensation planning is vital; if copper pads are etched smaller than designed, the effective soldermask clearance increases, potentially exposing adjacent laminate.
Decision Rule: If the component pitch is 0.5mm or less, switch from standard film imaging to Laser Direct Imaging (LDI) to maintain a viable process window.

What It Really Means (Scope & Boundaries)

The soldermask process window is not a single number but a statistical capability range that accounts for material movement, machine alignment, and chemical reaction rates. In PCB fabrication process, the soldermask is applied over the etched copper circuitry. The "window" determines how much the image can shift (registration error) before it covers a pad that should be exposed (encroachment) or exposes copper that should be covered (exposure).

The Three Dimensions of the Window

Registration (X/Y Axis): This is the alignment of the mask image to the copper layer. Factors affecting this include the scaling of the artwork, the thermal expansion of the panel during curing, and the accuracy of the exposure unit. A typical registration tolerance is ±2 mils (50 µm).
Resolution (Feature Size): This refers to the smallest structure the process can define. The most critical feature is the "solder dam"—the sliver of mask between two adjacent pads. If the dam is too narrow, it will peel off during developing or reflow.
Thickness (Z Axis): The mask must be thick enough to provide electrical insulation (dielectric strength) but thin enough to not interfere with stencil printing for SMT assembly.

Etch Compensation Planning Interaction

The soldermask process window is heavily dependent on the underlying copper geometry. During the etching process, copper is removed laterally as well as vertically. Etch compensation planning involves increasing the copper feature size on the production film to account for this lateral etch factor.

If etch compensation is calculated incorrectly, the final copper pad may be smaller than intended. Even if the soldermask is aligned perfectly to the design coordinates, the gap between the mask edge and the actual copper pad edge (the clearance) will be larger than expected. This can expose adjacent ground planes or traces, creating a risk of shorts during assembly. Conversely, if the copper is under-etched (too large), the soldermask might overlap the pad, reducing the solderable area.

Metrics That Matter (How to Evaluate It)

To control the soldermask process window, manufacturers monitor specific physical dimensions and process capabilities. The following tables outline the standard acceptance criteria and capability limits for high-reliability boards.

Table 1: Physical Dimension Metrics

Metric	Standard Capability	Advanced (HDI) Capability	Why It Matters
Solder Mask Expansion (SME)	3 mils (75 µm)	2 mils (50 µm)	Ensures the mask does not encroach on the pad despite misalignment.
Solder Mask Dam (SMD)	4 mils (100 µm)	3 mils (75 µm)	Prevents solder bridging between pads; critical for BGA/QFN fine pitch.
Registration Tolerance	±2 mils (50 µm)	±1 mil (25 µm)	Defines the maximum allowable shift of the mask layer relative to copper.
Thickness (Over Copper)	> 0.5 mils (12 µm)	> 0.3 mils (8 µm)	Provides dielectric strength and physical protection.
Thickness (Over Laminate)	0.8–1.2 mils (20–30 µm)	0.8–1.2 mils (20–30 µm)	Ensures adhesion to the base material.
Via Tenting Max Diameter	12 mils (0.3 mm)	8 mils (0.2 mm)	Determines if a via can be covered solely by the mask film strength.

Table 2: Process Capability by Method

Feature	Screen Printing	Flood Coat + Film Exposure	Laser Direct Imaging (LDI)
Alignment Accuracy	±4–6 mils	±2–3 mils	±0.5–1 mil
Min Dam Width	6–8 mils	4 mils	2.5–3 mils
Throughput	High	Medium	Lower
Cost Factor	Low	Medium	High
Best For	Simple, low-density boards	Standard multilayer PCBs	HDI PCB & Fine Pitch
Undercut Risk	Low	Moderate	Low (Straight sidewalls)

Key Numeric Thresholds

Adhesion Test: Must pass tape test per IPC-TM-650 2.4.28.1 (Rating 5B).
Hardness: Pencil hardness typically > 6H after final cure.
Breakdown Voltage: Typically > 500 V/mil for standard LPI mask.

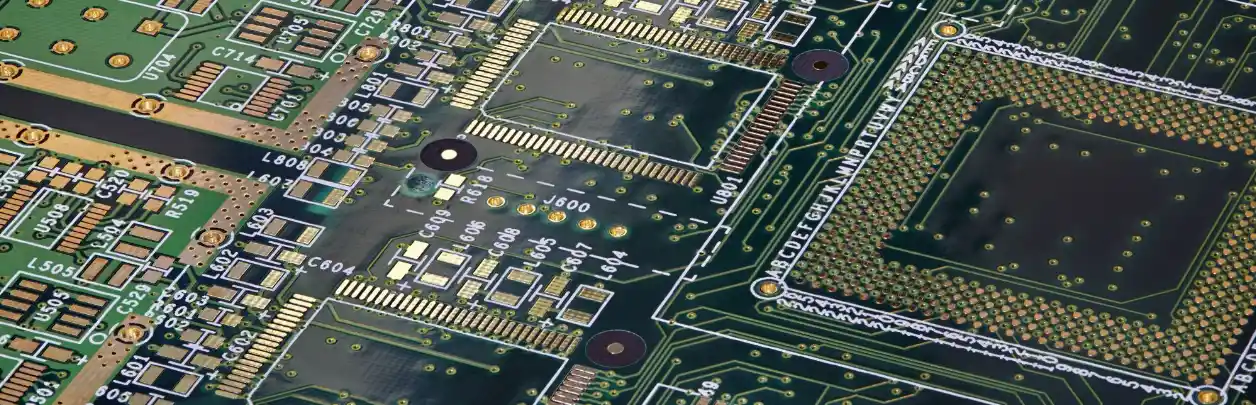

Close-up of HDI PCB showing tight soldermask dams

How to Choose (Selection Guidance by Scenario)

Selecting the right soldermask parameters and application method is a trade-off between cost, yield, and design density. Use these decision rules to navigate the process window.

If the component pitch is < 0.5mm, choose Laser Direct Imaging (LDI). Standard film artwork stretches and shrinks, making it impossible to hold a 3-mil dam across a large panel.
If the design requires Non-Solder Mask Defined (NSMD) pads for BGAs, choose a mask expansion of at least 2 mils (50 µm). This ensures the solder ball wraps around the copper pad for mechanical strength.
If you are using heavy copper (> 2 oz), choose multiple coating passes or spray coating. Screen printing or curtain coating may result in thin coverage on the trace "knee" (corner), leading to voltage breakdown.
If the PCB operates at high voltage (> 100V), choose a soldermask with a high dielectric strength and ensure a minimum thickness of 1 mil (25 µm) over conductors.
If you require white or black soldermask, choose to relax the minimum dam width to 5–6 mils. These pigments block UV light, making it difficult to fully cure the bottom of the dam, leading to undercutting and peeling.
If the board is a flexible circuit, choose a flexible polyimide coverlay or a specialized flexible LPI mask. Standard rigid LPI will crack when bent.
If you need to tent vias, choose a via diameter of 12 mils (0.3mm) or less. Larger vias require plugging (conductive or non-conductive) before masking to prevent the mask from sagging and breaking.
If the design has impedance control on surface microstrips, choose to specify the soldermask thickness tolerance. Variations in mask thickness affect the dielectric constant and characteristic impedance.
If you are using ENIG finish, choose a soldermask with high chemical resistance. The aggressive chemistry of the electroless nickel/immersion gold process can attack improperly cured masks, causing "solder mask leaching."
If cost is the primary driver and pitch is > 0.8mm, choose standard liquid photoimageable (LPI) mask with film exposure. It offers the best balance of performance and economy.

Implementation Checkpoints (Design to Manufacturing)

Achieving a robust soldermask process window requires synchronization between the design data and the manufacturing floor. Follow this 10-step execution plan.

Phase 1: Data Preparation

Design Rule Check (DRC):
- Action: Run a DRC focusing on "Mask to Copper Clearance" and "Mask Bridge (Dam) Width."
- Acceptance: No clearances < 2 mils; no dams < 4 mils (unless LDI is specified).
Etch Compensation Planning:
- Action: Adjust copper layers in CAM to account for etch factors.
- Acceptance: Verify that the finished copper pad size matches the design, ensuring the mask clearance remains valid.
Panelization Scaling:
- Action: Apply non-linear scaling factors to the soldermask artwork to match the predicted material movement of the core material during lamination.
- Acceptance: Measured alignment targets on the panel edge must be within ±1 mil of the copper targets.

Phase 2: Surface Preparation

Pre-Clean Process:
- Action: Use chemical micro-etch or mechanical scrubbing (pumice/aluminum oxide) to roughen the copper surface.
- Acceptance: Surface roughness (Ra) should be 0.2–0.4 µm to ensure mechanical interlocking (adhesion).
- Measurable: Water break test—water should sheet off the panel without beading for > 30 seconds.

Phase 3: Application & Imaging

Coating Application:
- Action: Apply LPI ink via screen print, curtain coat, or spray.
- Acceptance: Wet film thickness must be uniform (typically 30–40 µm wet to achieve 20 µm dry).
Tack Dry (Pre-Cure):
- Action: Bake the panel to remove solvents, making the mask tack-free but not cross-linked.
- Acceptance: The coating must not stick to the artwork film or LDI table. Over-baking here narrows the process window by making development difficult.
Exposure:
- Action: Expose to UV light (365nm wavelength).
- Acceptance: Stouffer Step Wedge reading of 10–12 (solid step) to confirm correct energy density (mJ/cm²).

Phase 4: Developing & Curing

Developing:
- Action: Wash away unexposed mask using sodium carbonate solution.
- Acceptance: Sidewalls should be vertical. No "scum" (residue) left on pads.
- Measurable: Developing breakpoint should be at 50–60% of the chamber length.
Final Cure:
- Action: Thermal bake (typically 150°C for 60 mins) to fully cross-link the polymer.
- Acceptance: Mask must pass the solvent resistance test (MEK rub) and tape adhesion test.
Final Inspection:
- Action: Automated Optical Inspection (AOI) or visual check.
- Acceptance: No exposed copper on traces; no mask on pads. Registration within ±2 mils.

Common Mistakes (and the Correct Approach)

Failure to respect the soldermask process window leads to assembly defects. Here are the most frequent errors and their corrections.

1. Insufficient Dam Width

Mistake: Designing a 2-mil dam for a standard LPI process.
Impact: The dam lifts off during developing or reflow, causing solder bridging between pads.
Fix: Increase dam width to 4 mils or switch to LDI fabrication.
Verify: Check the "solder mask sliver" report in your DFM tool.

2. Ignoring Copper Height (Trace Height)

Mistake: Using standard coating parameters for 3 oz copper.
Impact: The mask thins out at the "knee" of the trace, leading to dielectric breakdown or exposure.
Fix: Specify "double coat" or "electrostatic spray" for heavy copper PCB stack-up.
Verify: Microsection analysis showing > 0.5 mil coverage at the corner.

3. Over-Aggressive Tenting

Mistake: Attempting to tent a 20-mil via with liquid mask.
Impact: The mask sags into the hole and breaks, trapping chemistry or allowing solder wicking.
Fix: Limit tented vias to < 12 mils or use a specific via plugging process (IPC-4761 Type III or IV).
Verify: Backlight test to check for pinholes in tented vias.

4. Poor Etch Compensation Planning

Mistake: Applying 1:1 mask data without considering copper reduction during etching.
Impact: The gap between the mask and the actual copper pad becomes too large, exposing adjacent ground pour.
Fix: Coordinate with the CAM department to ensure mask clearances are calculated based on the finished pad size, not the tooling pad size.
Verify: Compare Gerber files against the netlist and manufacturing compensation tables.

5. Incomplete Developing (Scumming)

Mistake: Old developer solution or incorrect conveyor speed.
Impact: Invisible residue remains on pads, causing poor solderability or "black pad" in ENIG.
Fix: Maintain developer pH and specific gravity; perform regular nozzle maintenance.
Verify: Dip a test coupon in solder; non-wetting indicates residue.

6. Undercutting on Colored Masks

Mistake: Using standard exposure energy for black or blue masks.
Impact: UV light doesn't penetrate to the bottom of the layer; the base of the dam dissolves, leaving an overhang that traps flux.
Fix: Increase exposure energy (mJ) and exposure time for high-pigment inks.
Verify: Cross-section inspection looking for a trapezoidal profile (wide base) rather than an inverted trapezoid.

7. Registration Drift on Large Panels

Mistake: Using film artwork on large (24" x 18") panels with tight tolerances.
Impact: Material shrinkage causes misalignment at the edges of the panel, even if the center is aligned.
Fix: Use LDI which uses "local fiducials" to scale the image dynamically to the actual panel dimensions.
Verify: Measure registration at all four corners of the manufacturing panel.

8. Solder Mask on Pad (Encroachment)

Mistake: Zero tolerance design (Mask defined pad) without LDI capability.
Impact: Reduced solderable area, causing tombstoning or open joints on small passives.
Fix: Use a nominal expansion of 2–3 mils for Non-Solder Mask Defined (NSMD) pads.
Verify: AOI inspection set to detect mask intrusion > 1 mil onto the pad.

FAQ (Cost, Lead Time, Materials, Testing, Acceptance Criteria)

1. How does tightening the soldermask process window affect PCB cost? Tightening the window (e.g., requiring 2-mil dams or ±1 mil alignment) forces the use of Laser Direct Imaging (LDI) and potentially lower yields.

Cost Impact: Expect a 10–15% increase in unit price.
Yield: Higher scrap rate due to registration failures.
Equipment: Requires advanced cleanrooms (Class 10,000 or better).

2. What is the difference between Solder Mask Defined (SMD) and Non-Solder Mask Defined (NSMD) pads? SMD pads have the mask opening smaller than the copper pad, while NSMD pads have the mask opening larger than the copper.

NSMD: Preferred for BGAs; provides better copper adhesion to laminate.
SMD: Used for high-density areas to prevent pad lifting, but reduces solderable area.
Process Window: NSMD requires a larger process window (clearance) to prevent mask from touching the pad.

3. Can I use different soldermask colors on the same board? While possible, it is rarely done due to the extreme cost and complexity of multiple coating and curing cycles.

Process: Requires masking, coating, curing, and repeating.
Risk: High risk of registration errors between colors.
Alternative: Use silkscreen for color differentiation instead of mask.

4. How does soldermask thickness affect impedance control? Soldermask is a dielectric material (Dk ≈ 3.5–4.0) that sits directly on top of surface microstrips, altering the electromagnetic field.

Impact: Can reduce impedance by 2–5 ohms.
Control: Manufacturers must control thickness to within ±5 µm.
Simulation: Design calculations must include the presence and thickness of the mask.

5. What is the typical lead time impact for LDI vs. Film imaging? LDI is a serial process (scanning each panel), whereas film exposure is a parallel process (flash exposure).

LDI: Slower throughput per panel, but zero setup time for artwork generation. Faster for prototypes.
Film: Fast throughput for production, but requires time to plot and inspect films.
Total Time: For quick turn PCB, LDI is often faster despite slower scan speeds.

6. Why do plugged vias sometimes look different under the soldermask? When vias are plugged (tented or filled), the soldermask pools over the hole or the plug material, creating a bump or dimple.

Dimples: Acceptable if < 5 mils deep (IPC-600).
Bumps: Must not interfere with component placement (flatness requirements).
Visual: Often appears as a darker dot due to increased ink thickness.

7. How do I verify soldermask cure quality? The industry standard is the solvent resistance test.

Method: Rub the surface with a cloth soaked in Methylene Chloride or MEK.
Criteria: No degradation, tackiness, or color transfer after the specified number of double rubs.
Importance: Under-cured mask will degrade during HASL or reflow soldering.

8. What is the minimum clearance for a "gang relief" mask opening? Gang relief opens a block of mask around a group of pins (like a connector) rather than individual pads.

Clearance: Typically 3–5 mils around the perimeter of the pin group.
Benefit: Eliminates the need for thin dams between pins.
Drawback: Increases the risk of solder bridging during wave soldering.

Glossary (Key Terms)

Term	Definition
LPI (Liquid Photoimageable)	An ink that can be imaged photographically (like film) to define precise patterns. The industry standard for soldermask.
LDI (Laser Direct Imaging)	A digital imaging process that uses UV lasers to expose the mask directly from CAD data, bypassing physical films.
SME (Solder Mask Expansion)	The distance from the edge of the copper pad to the edge of the soldermask opening.
Dam (Web)	The narrow strip of soldermask material that remains between two adjacent exposed pads.
Undercut	The erosion of the soldermask sidewall at the base, usually caused by insufficient exposure or over-developing.
Tenting	Covering a via hole with soldermask to prevent solder from entering it.
Bleed	The unwanted flow of soldermask ink onto a pad where it

Conclusion

soldermask process window is easiest to get right when you define the specifications and verification plan early, then confirm them through DFM and test coverage. Use the rules, checkpoints, and troubleshooting patterns above to reduce iteration loops and protect yield as volumes increase. If you’re unsure about a constraint, validate it with a small pilot build before locking the production release.
