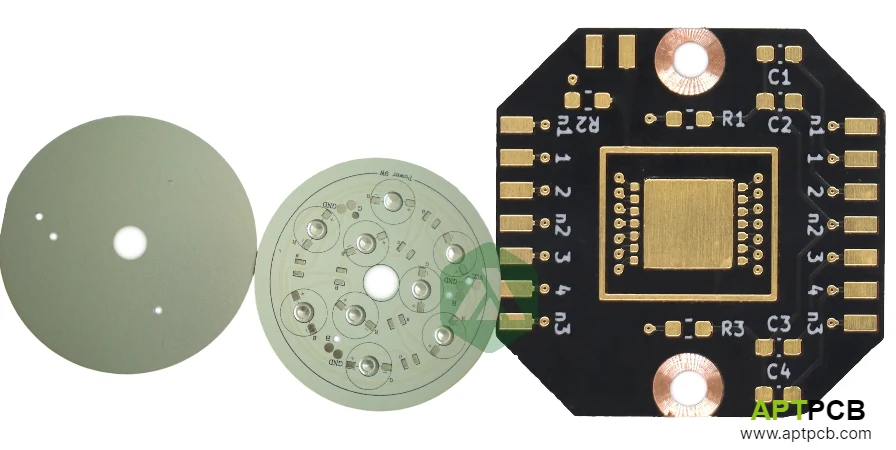

LED thermal performance is determined by the complete path from the LED junction to ambient air. The PCB is only one section of that path.
A reliable LED thermal design connects:
LED junction → package thermal pad → solder interface → PCB structure → thermal interface material (TIM) → heatsink → surrounding air
A high-performance MCPCB can still fail if the TIM layer is too thick, the mounting pressure is insufficient, or the heatsink cannot remove heat under actual operating conditions.
The correct design process starts with the thermal budget, then selects the PCB structure, interface materials, mechanical mounting method, and validation approach.
How do you calculate the thermal budget for an LED PCB design?
The thermal budget defines how much temperature rise is available between ambient temperature and the maximum LED junction temperature.
The fundamental relationship is:
Tj = Ta + P × Rθ(total)
Where:
- Tj = LED junction temperature
- Ta = ambient temperature
- P = heat generated by the LED system
- Rθ(total) = total thermal resistance from junction to ambient
The thermal resistance chain includes:
| Thermal Path Element | Engineering Consideration |
|---|---|
| LED package | Manufacturer-defined junction-to-case thermal resistance |
| Solder interface | Controlled through thermal pad design and assembly quality |
| PCB structure | Determined by FR-4, MCPCB, ceramic, copper thickness, and dielectric |
| TIM layer | Influenced by conductivity, thickness, pressure, and coverage |
| Heatsink | Determined by material, geometry, airflow, and mounting |
| Ambient transfer | Depends on enclosure design and convection conditions |
The largest improvement opportunities are normally in the PCB architecture, interface resistance, and heatsink integration because LED package resistance is usually fixed.
Which PCB technology should be selected for LED heat dissipation?
The PCB architecture should match LED power density, mechanical constraints, electrical isolation requirements, and lifetime targets.
| PCB Architecture | Thermal Capability | Typical Application |
|---|---|---|
| FR-4 with thermal vias | Moderate | Low-power LED boards |
| Aluminum MCPCB | High | Lighting modules, industrial LEDs, automotive lighting |
| Copper MCPCB | Very high | Compact high-power thermal systems |
| Ceramic PCB | Excellent thermal stability | High-temperature specialty LED applications |

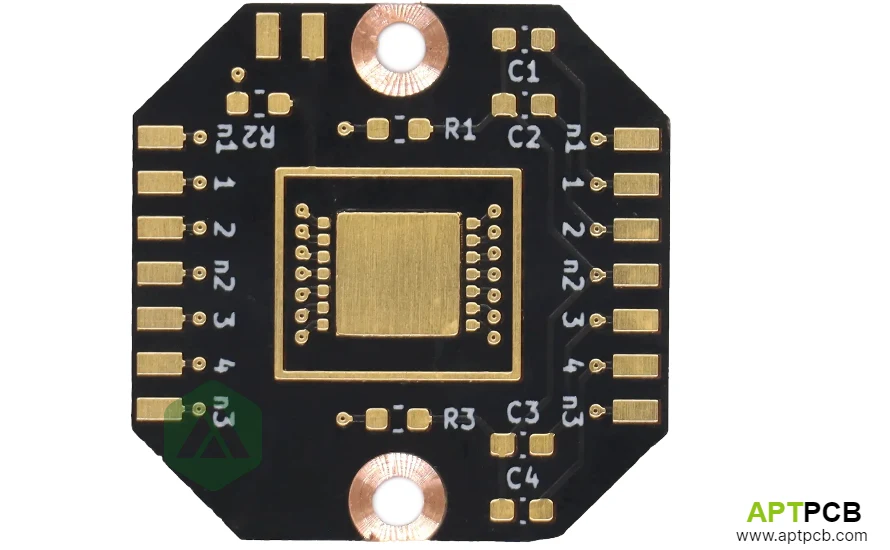

For high-power LEDs, MCPCB is commonly selected because the metal base creates a shorter vertical heat path than conventional FR-4.
A typical MCPCB thermal structure is:
LED thermal pad → copper layer → dielectric layer → aluminum/copper core → TIM → heatsink
The dielectric layer is often the main thermal bottleneck. A thinner dielectric with higher thermal conductivity reduces thermal resistance.
How should engineers compare aluminum MCPCB, copper MCPCB and ceramic PCB?
Material selection should consider thermal performance, cost, mechanical requirements, and manufacturing constraints.
| Material | Thermal Advantage | Best Fit |
|---|---|---|
| Aluminum MCPCB | Balanced conductivity, cost, and weight | General LED lighting and industrial modules |
| Copper MCPCB | Highest heat spreading capability | High-power compact LED assemblies |
| Ceramic PCB | Excellent high-temperature stability | UV LED, aerospace, specialty thermal environments |
Important MCPCB specifications include:
- Dielectric thermal conductivity.
- Dielectric thickness.
- Metal core material and thickness.
- Copper thickness.
- Electrical isolation capability.
- Surface flatness.
- Thermal impedance.
Specify the complete stack-up rather than only requesting a “high thermal PCB.”
Related manufacturing processes such as assembly process control and metal-core PCB production directly influence final thermal performance.
What MCPCB parameters have the greatest impact on LED temperature?
MCPCB performance depends on several connected parameters.
| Parameter | Thermal Impact |
|---|---|
| Dielectric thermal conductivity | Controls vertical heat transfer through the PCB |
| Dielectric thickness | Directly affects thermal resistance |
| Metal core material | Controls spreading capability |
| Copper thickness | Improves heat spreading and current capability |
| Thermal pad design | Determines heat transfer from LED package |
| Flatness | Controls PCB-to-heatsink contact quality |
A typical LED MCPCB stack includes:
- Copper circuit layer: commonly 1–3 oz.
- Thermally conductive dielectric: typically tens to hundreds of microns depending on construction.
- Aluminum or copper base layer.
The dielectric must balance thermal conductivity with electrical insulation. Increasing conductivity alone does not guarantee lower system temperature if the interface, mounting, or heatsink design becomes the limiting factor.
How should the PCB-to-heatsink thermal interface be designed?
The PCB-to-heatsink connection frequently determines whether the thermal design achieves its target.
Air gaps create significant thermal resistance because air is a poor conductor compared with metals and thermal interface materials.
Interface performance depends on:
- Contact area.
- Surface flatness.
- TIM selection.
- Mounting pressure.
- Assembly repeatability.
Recommended design controls include:
- Maximize contact between the PCB thermal area and heatsink surface.
- Control surface flatness.
- Define mounting torque or clamping force.
- Verify TIM thickness and coverage.
Appropriate board profiling helps maintain mechanical accuracy for thermal interfaces.
Which thermal interface material should be used for LED PCB assemblies?
TIM selection should be based on thermal resistance, assembly requirements, reliability, and serviceability.
| TIM Type | Advantages | Engineering Considerations |
|---|---|---|
| Thermal grease | Lowest interface resistance | Requires controlled application and may pump out |
| Phase-change material | Good long-term stability | Requires activation temperature |
| Thermal pad | Easy assembly and gap filling | Higher resistance from thicker bond lines |
| Thermal adhesive | Provides mechanical bonding | Limited rework capability |
The effective thermal resistance depends on:
- Material conductivity.
- Bond-line thickness.
- Contact pressure.
- Contact area.
A thin TIM layer with moderate conductivity can outperform a premium material applied too thickly.
How should LED heatsinks be selected?
The heatsink completes the thermal path by transferring energy from the PCB into ambient air.
The correct heatsink depends on:
- Total heat generation.
- Ambient temperature.
- Airflow conditions.
- Installation orientation.
- Required lifetime.
Natural convection systems
Natural convection designs typically require:
- Larger surface area.
- Appropriate fin spacing.
- Correct mounting orientation.
Forced convection systems
Forced cooling enables smaller heatsinks but introduces:
- Fan reliability concerns.
- Additional power consumption.
- Airflow management requirements.
The heatsink thermal resistance rating should match the actual enclosure and operating environment rather than ideal laboratory conditions.
What LED thermal failures should engineers investigate?
| Failure Symptom | Likely Cause | Investigation Method |
|---|---|---|
| Reduced brightness | Excessive junction temperature | Measure case temperature and estimate Tj |
| Color shift | Thermal overstress | Check temperature distribution |
| Early LED failure | Insufficient thermal margin | Review thermal budget |
| PCB hot spots | Poor spreading or layout | Use infrared imaging |
| Unit-to-unit variation | TIM or assembly inconsistency | Audit production process |
| Hot heatsink base | Interface or airflow limitation | Verify mounting and convection |
Thermal failures usually occur at the weakest point in the heat path rather than from PCB material selection alone.
How should LED thermal performance be validated before production?
Thermal validation should test the assembled product under realistic conditions.
Temperature measurement
Measure:
- LED case temperature.
- PCB temperature.
- Heatsink base temperature.
- Heatsink fin temperature.
Junction temperature estimation
Estimate junction temperature using measured case temperature and the LED manufacturer's thermal resistance data.
Maintain design margin between measured junction temperature and the LED maximum rating. A practical reliability target commonly maintains approximately 10–15°C margin depending on application requirements.
Thermal imaging
Infrared thermal imaging identifies:
- Hot spots.
- Uneven spreading.
- Poor TIM contact.
- Unexpected heat concentration.
Environmental testing
Validate at:
- Maximum rated LED power.
- Maximum ambient temperature.
- Minimum airflow conditions.
- Final enclosure conditions.
LED PCB thermal supplier qualification checklist
A thermal-capable supplier should provide measurable process information.
| Supplier Evaluation Item | Required Information |
|---|---|
| Thermal stack-up | Exact dielectric thickness and conductivity |
| Material traceability | Base metal and laminate documentation |
| Flatness control | Capability for PCB-to-heatsink interfaces |
| Thermal testing | Available measurement methods |
| Assembly capability | TIM application and mounting controls |
| Production consistency | Inspection records and process monitoring |
Supplier qualification should be based on measured thermal performance, not only material datasheets.
What is the complete LED heat dissipation PCB design process?
A reliable LED thermal design follows a complete system approach:
- Define the thermal budget from junction temperature limits.
- Select FR-4, MCPCB, copper, or ceramic according to power density.
- Optimize the LED thermal pad and PCB stack-up.
- Select TIM based on resistance and assembly requirements.
- Match the heatsink to real airflow and enclosure conditions.
- Validate the complete assembly with temperature testing and thermal imaging.
LED reliability depends on maintaining a controlled thermal path from junction temperature to ambient air. The PCB, TIM, and heatsink must operate as one integrated thermal system.
