High Frequency Printed Circuit Board | Structure, Layers & Construction

A high frequency printed circuit board achieves its performance through carefully engineered layer structures, material combinations, and interconnect systems working together as an integrated electromagnetic system. Unlike standard PCBs where structure primarily addresses mechanical support and basic electrical connectivity, high frequency boards require structural decisions that directly impact impedance accuracy, signal loss, electromagnetic shielding, and thermal management.

This guide examines the structural elements of high frequency PCBs—layer stack architecture, transmission line implementations, via structures, and hybrid material approaches—providing engineers with the knowledge to make informed design decisions and specify appropriate manufacturing requirements.

Optimizing Layer Stack Architecture

The layer stack defines vertical arrangement of copper layers, dielectric materials, and their thicknesses throughout the board construction. In high frequency printed circuit boards, stack design determines characteristic impedance of transmission lines, controls electromagnetic coupling between layers, and establishes shielding effectiveness for sensitive circuits.

Signal Layer Positioning

Signal layer positioning requires careful consideration of electromagnetic environment. RF signal layers need adjacent, continuous reference planes establishing controlled impedance transmission line structures. Two primary configurations exist:

Outer Layer Microstrip: Traces on external surfaces provide accessible structures for component mounting, measurement probe access, and post-fabrication tuning capability. However, the exposed nature results in some radiation loss (typically 0.01-0.05 dB/wavelength at 10 GHz) and susceptibility to external coupling.

Inner Layer Stripline: Buried between reference planes, stripline offers superior shielding with virtually zero radiation. Isolation between adjacent stripline traces exceeds microstrip by 20-30 dB. The trade-off is that via transitions are required for component access.

Reference Plane Strategy

Reference planes serve multiple critical functions beyond simple signal return paths:

Return Current Path: High frequency return currents flow directly beneath signal traces (within approximately 3 trace-widths), making continuous planes essential for controlled impedance
Electromagnetic Shields: Ground planes create barriers between circuit sections, with shielding effectiveness proportional to conductivity and inversely related to any gaps
Heat Spreading: Copper planes distribute thermal energy from hot spots, improving overall thermal management

Slots, gaps, and plane splits force return currents to detour around obstacles, creating inductance and potential radiation. A slot as narrow as 10 mils can increase return path inductance by 1-2 nH, sufficient to cause impedance discontinuities at GHz frequencies.

Key Layer Stack Design Principles

Signal-Reference Pairing: Every high frequency signal layer positioned adjacent to continuous reference plane. Routing over split planes causes approximately 10% impedance variation at the split boundary.
Symmetrical Construction: Balanced copper distribution and dielectric thickness prevents warpage during lamination and thermal cycling—critical for fine-pitch assembly.
Functional Layer Assignment: Critical RF traces on premium low-loss material layers; power distribution and digital sections on cost-effective alternatives.
Shielding Layer Integration: Ground planes positioned between RF and digital sections providing 40-60 dB electromagnetic isolation.
Thermal Path Planning: Copper plane placement facilitating heat transfer from power components. See heavy copper construction for high-power applications.
Manufacturing Feasibility: Layer count and material combinations compatible with lamination capabilities—hybrid stacks require validated bonding processes.

Implementing Transmission Line Structures

High frequency printed circuit boards implement various transmission line geometries, each with specific electromagnetic characteristics suited to different design requirements. The choice affects impedance range, isolation, loss, and manufacturing complexity.

Microstrip Configuration

Microstrip places signal traces on outer layers over ground reference planes. Key characteristics:

Effective Dielectric Constant: The exposed trace experiences fields both in substrate (Dk typically 3-4) and air (Dk=1), creating effective Dk approximately 60-75% of substrate value
Impedance Range: Practical range approximately 30-120Ω; very low impedance requires excessively wide traces, very high impedance requires impractically narrow traces
Dispersion: Effective Dk increases with frequency (approximately 5-10% from 1 to 10 GHz), causing phase velocity to decrease at higher frequencies
Radiation: Open structure radiates energy, particularly at discontinuities and bends

Stripline Configuration

Stripline buries signal traces between two reference planes, creating fully shielded transmission line:

Homogeneous Dielectric: Fields contained entirely within substrate material, eliminating dispersion effects
Superior Isolation: Coupling between adjacent striplines typically 15-20 dB lower than equivalent microstrip spacing
Symmetric Impedance: Balanced ground planes simplify impedance calculations
Manufacturing Requirements: Tighter thickness tolerances required; asymmetric dielectric thickness shifts impedance

Coplanar Waveguide (CPW)

Coplanar structures place ground conductors on the same layer as signal traces:

Ground-Signal-Ground: Three-conductor structure enables characteristic impedances difficult to achieve with microstrip
Simplified Grounding: Direct ground access without vias for RF components
Flip-Chip Compatible: Coplanar structure matches flip-chip IC geometries
Mode Control: Requires via connections to underlying planes preventing parasitic parallel-plate modes

Key Transmission Line Implementation Requirements

Impedance Targeting: Trace width, spacing, and dielectric thickness combinations achieving 50Ω standard or application-specific values with ±5% tolerance typically required.
Loss Management: Material selection (Df < 0.004 for most RF applications), smooth copper surfaces, and trace length optimization.
Isolation Achievement: Structure selection and ground via fencing providing required isolation—typically 40 dB or better between transmit and receive.
Transition Design: Via structures and layer change geometries maintaining impedance continuity. See our guide on high frequency multilayer PCB construction.
Coupled Line Control: Precisely controlled spacing for differential pairs and coupled-line filters through HDI fabrication techniques.
Test Access: Provisions for impedance measurement using TDR and RF probing for S-parameter characterization.

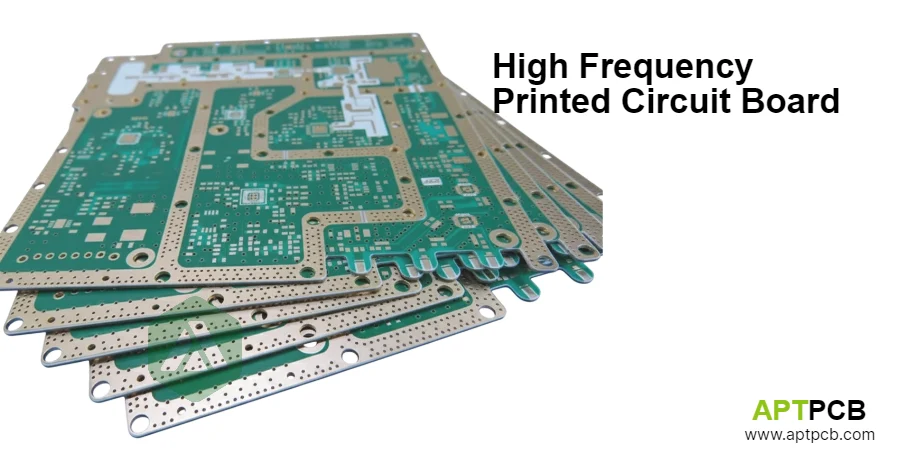

High Frequency Printed Circuit Board

Engineering Via and Interconnect Structures

Vertical interconnects significantly impact high frequency printed circuit board performance. Via structures introduce parasitic inductance (typically 0.5-1.5 nH per via) and capacitance (0.3-0.5 pF) creating impedance discontinuities. More critically, unused via portions create resonant stubs.

Via Stub Resonance

Through-hole vias connecting only certain layers leave unused barrel portions acting as transmission line stubs. These stubs resonate at quarter-wavelength frequencies:

f_resonance ≈ c / (4 × L_stub × √Dk_effective)

A 40-mil stub in Dk=3.5 substrate resonates near 10 GHz, creating a transmission notch potentially falling within operating bandwidth. Solutions include:

Via Technologies

Back-Drilling: Controlled-depth drilling removes unused via portions after standard fabrication. Depth control accuracy within ±4 mils ensures complete stub removal. This technique enables standard through-hole fabrication with subsequent stub removal—typically adding 10-15% to fabrication cost.

Blind and Buried Vias: Layer-specific connections eliminating stub issues entirely. Blind vias connect outer to inner layers; buried vias connect inner layers only. Requires sequential lamination adding complexity and cost but providing optimal electrical performance.

Microvias: Laser drilling enables 75-150 μm diameter vias with minimal parasitic effects. Single-layer microvias span adjacent layers; stacked or staggered configurations reach multiple layers.

Key Via Structure Considerations

Stub Length Limitation: Design rules constraining via stub length based on operating frequency—stubs below λ/20 generally acceptable, meaning ≤8 mils for 40 GHz operation.
Back-Drill Specification: Controlled-depth drilling parameters ensuring complete stub removal with 4-6 mil margin from active connections.
Microvia Application: Small-diameter vias for highest frequency signal transitions, particularly in dense BGA breakout regions.
Ground Via Placement: Adjacent ground vias within 1-2 via diameters providing low-inductance return paths and improving transition impedance.
Impedance Compensation: Anti-pad sizing (typically 1.5-2x via diameter) and ground via placement optimizing via impedance to approach 50Ω.
Aspect Ratio Management: Via diameter/board thickness ratios ensuring reliable plating—typically 8:1 to 10:1 maximum.

Combining Materials in Hybrid Constructions

High frequency printed circuit boards often combine multiple material types in single constructions, optimizing performance and cost across different functional areas. Hybrid approaches use premium low-loss materials only where electrical performance demands while employing cost-effective materials elsewhere.

Material Roles

Core Materials: Rigid, dimensionally stable layers with precise dielectric thickness control. RF signals route on cores with tightly controlled Dk.

Prepreg Materials: Bond layers flowing to fill surface features during lamination before curing. Electrical properties affect signals on adjacent layers.

Hybrid Construction Benefits

Mixed material constructions placing premium RF laminates on critical outer layers or designated RF signal layers while using standard materials for power distribution and digital signals can reduce material cost 30-50% compared to all-premium constructions while maintaining full RF performance on critical signal paths.

Example: An 8-layer board might use Rogers RO4350B (Dk=3.48, Df=0.0037) for layers 1-2 (RF circuits) and standard mid-Tg FR-4 for layers 3-8 (digital and power), achieving significant cost reduction with minimal RF performance impact.

Key Hybrid Construction Considerations

Material Compatibility: Thermal expansion matching prevents delamination—CTE differences below 5 ppm/°C between adjacent materials preferred.
Process Integration: Lamination profiles accommodating different material flow characteristics and cure requirements. PTFE materials require longer dwell times than epoxy systems.
Bonding Reliability: Some combinations require bonding films or surface treatments achieving reliable adhesion. See specialized PCB manufacturing techniques.
Performance Verification: Testing confirming both RF performance on premium layers and adequate performance on standard material sections.
Cost Optimization: Strategic material placement maximizing cost reduction—RF layers may represent only 20-30% of total construction.
Layer Registration: Alignment accuracy maintained across different material types with varying dimensional behavior during processing.

Ensuring Manufacturing Precision and Quality

High frequency printed circuit board structures demand manufacturing precision beyond standard PCB capabilities. Dimensional tolerances directly impact impedance, material handling affects electrical properties, and surface quality influences conductor losses.

Critical Process Parameters

Trace Geometry Control: Photolithography processes must maintain feature definition while etching achieves consistent trace widths within ±0.5 mil tolerance. Etch compensation factors account for undercut, varying by copper weight (½ oz typically requires +0.3 mil compensation; 1 oz requires +0.5 mil).

Dielectric Thickness Control: Lamination processes determine final dielectric thickness affecting impedance. Prepreg flow depends on:

Resin content (higher content = more flow)
Copper density (sparse copper areas receive more resin)
Press cycle parameters (temperature, pressure, dwell time)

Rigorous quality systems monitor and control these parameters ensuring thickness within design tolerances.

Surface Quality: Smooth copper surfaces minimize skin effect losses at high frequencies. Surface roughness specifications (typically Rz < 3 μm for demanding applications) require appropriate copper foil selection and controlled processing.

Quality Validation

Impedance Testing: TDR measurement on production coupons validates controlled impedance achievement
Dimensional Inspection: Automated optical measurement confirms trace widths and spacing
Cross-Section Analysis: Microsection examination reveals layer registration, plating quality, via structure
Material Certification: Incoming inspection verifies laminate Dk and Df meet specifications

Professional high frequency PCB manufacturing combines specialized material handling, precision process control, and comprehensive verification delivering high frequency printed circuit boards achieving designed structural and electrical performance.
