The LED driver converts available power into the precisely regulated current that LEDs require for optimal operation. Unlike resistive loads that tolerate voltage variation, LEDs demand constant current—small voltage changes produce large current swings that affect brightness, color, and lifetime. The driver PCB must deliver this current regulation while managing the electromagnetic and thermal challenges inherent in power conversion.

LED driver PCB design combines power electronics fundamentals with LED-specific requirements. Topology selection determines efficiency characteristics and component stress. Layout techniques control parasitic inductance and electromagnetic emissions. Thermal design ensures driver reliability matches or exceeds the LED array it powers.

This guide addresses LED driver PCB design from topology selection through production-ready layout, providing practical guidance for efficient, reliable LED power conversion.

Understanding LED Driver Topologies

Topology selection establishes driver efficiency characteristics, component requirements, and cost structure. The choice between buck, boost, buck-boost, and isolated topologies depends on input voltage range, LED string configuration, power level, and isolation requirements.

Each topology presents distinct trade-offs. Buck converters efficiently step down voltage but require input voltage exceeding output. Boost converters step up voltage but cannot dim below a minimum output. Isolated topologies provide galvanic separation required for safety but add transformer complexity and cost.

Topology Selection Factors

Buck (Step-Down): Most efficient topology when input voltage consistently exceeds LED string voltage. Output voltage range typically 90% down to 10% of input. Simple control, low component count. Ideal for 24V or 48V systems powering moderate LED strings.
Boost (Step-Up): Enables driving LED strings at higher voltage than input supply. Common in battery-powered applications where cell voltage falls below LED Vf sum. Limited dimming range at low duty cycles.
Buck-Boost: Accommodates input voltage above or below output voltage—valuable when input varies widely (automotive 9-16V, battery discharge curves). Added complexity versus single-stage converters.
Flyback Isolated: Common for mains-powered drivers providing safety isolation. Single-switch simplicity suits power levels to ~100W. Transformer design affects efficiency and EMI characteristics. Requires understanding of high-frequency PCB design principles.
LLC Resonant: High efficiency at medium to high power through soft switching. More complex control and magnetics design; justified for applications where efficiency premium matters.
Linear Regulation: Simplest implementation but efficiency equals Vled/Vsupply. Acceptable only when voltage differential is small or power very low. Generates heat proportional to wasted power.

Implementing Constant Current Regulation

Constant current regulation maintains LED brightness and color consistency despite input voltage variation, temperature changes, and component aging. The regulation method affects response speed, accuracy, ripple current, and efficiency—parameters that interact with LED performance characteristics.

LED current ripple represents a key specification. High-frequency ripple (switching frequency) is largely invisible but contributes to RMS heating. Low-frequency ripple (100/120Hz from rectified mains) can cause visible flicker affecting human comfort and productivity. Quality drivers minimize both ripple components.

Current Regulation Approaches

Peak Current Mode Control: Senses inductor peak current each switching cycle. Fast transient response; inherent overcurrent protection. Requires slope compensation to prevent subharmonic oscillation above 50% duty cycle.
Average Current Mode Control: Maintains average current through sensing resistor and error amplifier. Better accuracy than peak mode; more complex compensation. Preferred for applications requiring tight current tolerance.
Hysteretic Control: Maintains current between upper and lower thresholds without fixed frequency. Simple implementation, fast response, but variable frequency complicates EMI filtering.
Current Sense Methods: Precision sense resistors provide accurate measurement with power loss trade-off. Current transformers and Hall sensors enable lossless sensing at higher cost and complexity.
Ripple Specification: Define acceptable current ripple for application. Medical and display applications may require <5% ripple; general illumination typically accepts 10-20% without visible effect.
Regulation Accuracy: Account for sense resistor tolerance, reference accuracy, and temperature drift. ±3-5% current accuracy achievable with reasonable component selection; tighter tolerance requires precision components.

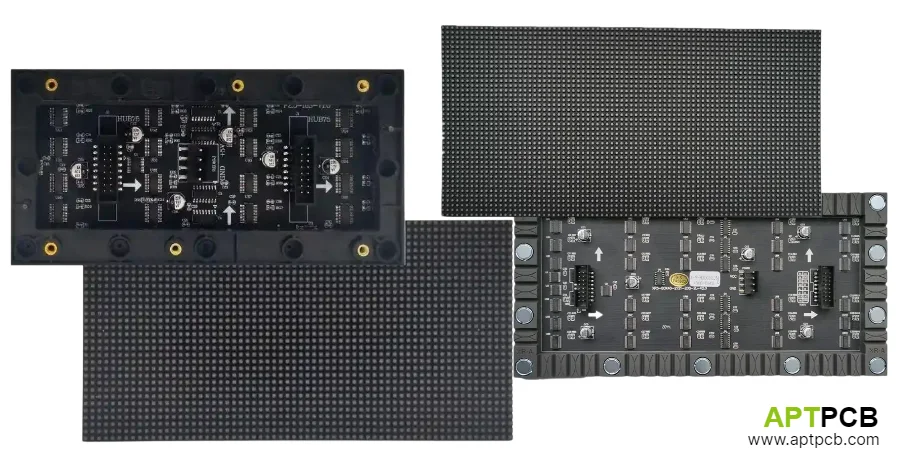

LED Driver PCBA

Managing Electromagnetic Compatibility

LED driver switching creates electromagnetic interference that must be controlled for regulatory compliance and to prevent interference with other equipment. EMC design begins at topology selection and continues through component selection, layout, and filtering—retrofitting EMC compliance to completed designs is expensive and often ineffective.

EMC requirements vary by market and application. Consumer products must meet residential limits; industrial equipment follows less stringent industrial limits. Automotive applications face specific conducted and radiated emissions requirements that demand early attention in the design process.

EMC Design Strategies

Frequency Selection: Lower switching frequencies reduce high-frequency emissions but require larger magnetics. Consider frequency dithering (spread spectrum) to reduce peak emissions at specific frequencies. Balance EMC benefit against added control complexity.
Input Filtering: LC filter attenuates conducted emissions at switching frequency and harmonics. Filter corner frequency below switching frequency; adequate attenuation at regulatory measurement frequencies. Understanding filter interaction with power systems prevents instability.
Loop Area Minimization: High di/dt switching loops generate magnetic field proportional to loop area. Minimize distance between switch, diode, and filter capacitor. Place these components adjacent with direct connections.
Ground Plane Strategy: Continuous ground plane under sensitive circuits reduces impedance and provides shielding. Keep switching current returns localized; prevent coupling to signal circuits.
Shielding Considerations: Metal enclosures provide conducted emission reduction and radiated emission containment. Ensure proper grounding of shields; improper shield grounding can worsen rather than improve EMC.
Component Selection: Soft-recovery diodes reduce voltage spikes and associated emissions. Snubber circuits dampen ringing. Select switching devices with appropriate speed—faster isn't always better for EMC.

Designing for Thermal Performance

LED drivers dissipate power proportional to their inefficiency—a 90% efficient 50W driver generates 5W of heat requiring management. This heat affects component reliability, particularly electrolytic capacitors whose lifetime halves with each 10°C temperature increase. Thermal design ensures driver reliability matches the LED system it powers.

Driver thermal challenges differ from LED array thermal design. Rather than managing a few high-power heat sources, drivers contain multiple moderate heat sources (switching devices, diodes, magnetics, sense resistors) distributed across the board area. Effective thermal design addresses both peak temperatures at individual components and overall board temperature affecting all components.

Driver Thermal Management

Power Dissipation Mapping: Identify all significant heat sources and calculate individual power dissipation. Switching devices, output diodes, inductors, and sense resistors typically dominate. Total dissipation equals output power times (1/efficiency - 1).
Component Thermal Capability: Verify each power component operates within thermal ratings at maximum ambient temperature. Check component datasheets for thermal derating curves that may limit power at elevated temperatures.
PCB Thermal Design: Use copper pours for heat spreading from power devices. Thermal vias under power components transfer heat to opposite board side or internal planes. Heavy copper construction improves both current capacity and thermal performance.
Electrolytic Capacitor Protection: Position electrolytics away from heat sources, in coolest board area. Consider capacitor ripple current heating in addition to ambient temperature. Premium long-life capacitors justify cost through reliability improvement.
Thermal Interface Design: For conduction-cooled designs, ensure good thermal contact between board and enclosure. Specify appropriate surface finishes and flatness for thermal interface surfaces.
Operating Temperature Specification: Define ambient temperature range for the driver. Design thermal solution for maximum ambient with appropriate margin; verify minimum ambient doesn't cause startup or control issues.

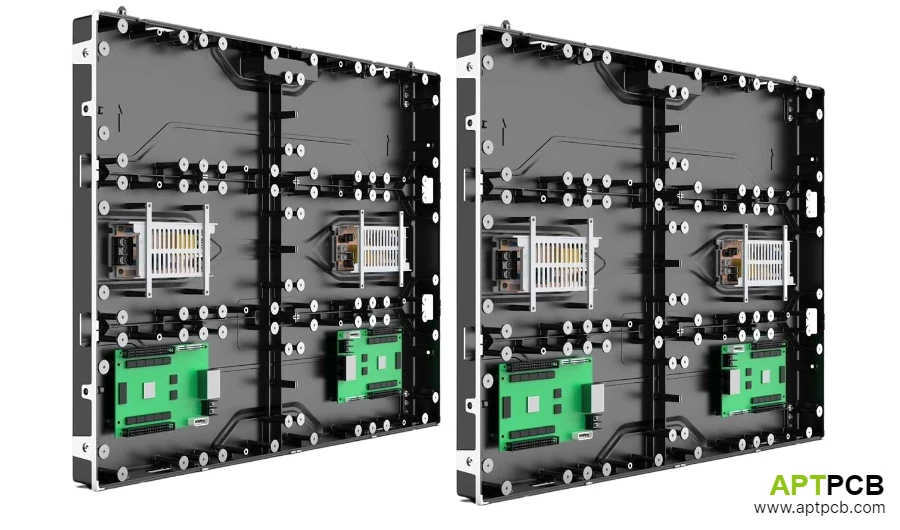

LED Driver

Implementing Dimming Control

Dimming capability extends LED driver functionality beyond simple on/off operation, enabling energy savings, ambiance control, and compatibility with building automation systems. Different dimming methods impose distinct driver requirements—supporting intended dimming approaches requires early design consideration.

Dimming Implementation Methods

PWM Dimming: Switches LED current fully on and off at high frequency. Maintains color consistency across dimming range since LEDs always operate at full current when on. Requires PWM input interface and fast current loop response.
Analog (CCR) Dimming: Varies LED current amplitude continuously. Simpler control interface (0-10V common) but color temperature may shift at low current levels with some LED types. Current loop must maintain stability across wide current range.
Phase-Cut Compatibility: Enables use with existing residential dimmer switches. Requires detecting dimmer phase angle and converting to driver output level. Significant design complexity for proper compatibility across dimmer types. Minimum load requirements may necessitate bleeder circuits.
DALI Protocol: Digital addressable lighting interface enabling individual fixture control in commercial applications. Requires DALI decoder circuitry and bidirectional communication capability.
Wireless Control: Bluetooth, Zigbee, or WiFi control integration for smart lighting applications. Adds microcontroller and wireless module requirements to driver design. Communication system integration expertise beneficial.
Dimming Range Specification: Define required dimming range (100:1 common for quality drivers) and smoothness. Test actual dimming performance; some topologies struggle at dimming extremes.

Optimizing PCB Layout for Performance

Layout execution determines whether carefully designed circuits achieve their performance potential. Power electronics layout differs from signal-level PCB design—component placement and trace routing directly affect switching performance, EMI, and thermal behavior.

Layout Best Practices

Power Stage Placement: Minimize high-current loop area by placing switching device, output diode, and filter capacitor as close as possible. High di/dt paths should be short, wide, and over ground plane.
Sense Resistor Connection: Route current sense signals using Kelvin connections directly at resistor pads. Avoid including any trace resistance between sense points; small errors in sense resistance cause current regulation errors.
Ground Return Management: Separate high-current switching returns from sensitive analog and control grounds. Connect at single point near input capacitor negative terminal. Prevent noise coupling through shared impedance.
Gate Drive Routing: Keep gate drive traces short to minimize inductance affecting switching speed. Include ground return trace adjacent to gate signal for controlled loop inductance.
Thermal Via Placement: Place thermal vias directly under power components, continuing to internal ground planes or opposite side copper pours. Appropriate drilling and via design optimizes thermal performance.
Design Verification: Use PCB design verification tools to review layout before fabrication. Check clearance and creepage distances against safety requirements; verify current capacity of all power traces.

Summary

LED driver PCB design integrates power conversion fundamentals with LED-specific requirements for current regulation, EMC compliance, and thermal management. Topology selection establishes efficiency and cost framework; implementation quality determines whether theoretical performance translates to production reality.

Success requires attention throughout the design process: selecting topology appropriate to input/output requirements, implementing accurate current regulation, designing EMC compliance from the beginning, managing thermal challenges for reliability, and executing layout that preserves circuit performance.

Quality LED drivers match or exceed LED array lifetime—poor driver reliability undermines the longevity advantage that LED technology promises.
