Advanced PCB materials are not defined by being more expensive or more specialized. They become important when the material changes the manufacturing route, assembly process, mechanical behavior, or ownership boundary of the final product.
A metal-core PCB, a polyimide flex circuit, and an ABF package substrate may all be described as advanced substrate technologies, but they solve different engineering problems.
The correct review question is:
Which part of the product development route stops behaving like a standard FR-4 PCB first?
For MCPCB designs, the answer is usually thermal transfer and assembly control.
For flex PCB designs, the answer is usually bending, reinforcement, and connector interface control.
For package substrates, the answer is usually the boundary between substrate manufacturing, package integration, and system-level validation.
Quick Answer
Advanced PCB materials should be selected by identifying the first constraint that changes: thermal processing, mechanical reliability, electrical performance, or package ownership. Material selection should then follow the required process evidence, supplier capability, and validation boundary.
Table of Contents
- When does a PCB require an advanced material review?
- How should engineers compare MCPCB, flex, and package substrates?
- How do MCPCB materials change assembly and manufacturing?
- How should flex PCB materials be selected for bending and connectors?
- Why are package substrates different from advanced PCBs?
- What failure modes should suppliers review before production?
- What evidence should be frozen before RFQ and first build?
- FAQ
When does a PCB require an advanced material review?
A PCB requires an advanced material review when the selected construction changes one of four engineering assumptions:
| Change area | What changes | Typical examples |
|---|---|---|
| Thermal behavior | Heat flow and assembly profile become critical | Aluminum MCPCB, IMS LED boards |
| Mechanical behavior | Board movement or reinforcement becomes a reliability factor | Flex PCB, rigid-flex PCB |
| Electrical behavior | Dielectric properties affect performance | RF laminates, high-speed materials |
| Package ownership | The substrate becomes part of a larger semiconductor package | ABF package substrate, CoWoS-related structures |
This approach is more useful than simply labeling a material as “high performance.”
The material decision should answer:
- What physical property changed?
- Which process step became harder?
- What evidence proves the design is ready?
- Where does supplier responsibility end?
How should engineers compare MCPCB, flex, and package substrates?
The following decision matrix provides a practical starting point.
| Substrate family | Primary reason for selection | First engineering review | Key supplier evidence |
|---|---|---|---|
| MCPCB / IMS | Thermal spreading and heat removal | Thermal assembly and flatness | Thermal stackup, reflow capability, void inspection |
| Flex PCB | 3D routing and mechanical movement | Bend zone, copper fatigue, connector fit | Stackup control, bend validation, stiffener process |
| Rigid-flex PCB | Combined mechanical and rigid mounting needs | Transition reliability | Layer registration, coverlay, transition inspection |
| ABF package substrate | Semiconductor package integration | Package boundary and fine-feature capability | Process capability, warpage control, package-level documentation |
The most important selection decision is not the material name. It is the process consequence created by that material.
How do MCPCB materials change assembly and manufacturing?
Metal-core PCB designs become challenging because the thermal structure changes the assembly route.
An aluminum or copper core affects:
- heat absorption during soldering
- thermal pad behavior
- solder joint reliability
- board flatness after thermal cycles
- panel separation requirements
For LED MCPCB applications, thermal design and SMT assembly must be reviewed together.
For the assembly branch, see:
For depanelization review:
MCPCB decision checkpoints
| Review item | Engineering question |
|---|---|
| Metal core thickness | Does the thermal path match the heat load? |
| Dielectric layer | Does insulation thickness balance thermal resistance and voltage requirements? |
| Solder process | Can the profile maintain reliable joints across the thermal mass? |
| Flatness | Does the finished board meet mounting requirements? |
| Depanelization | Can separation occur without edge damage or contamination? |
A thermal substrate should therefore be reviewed as a process platform, not only as a laminate choice.

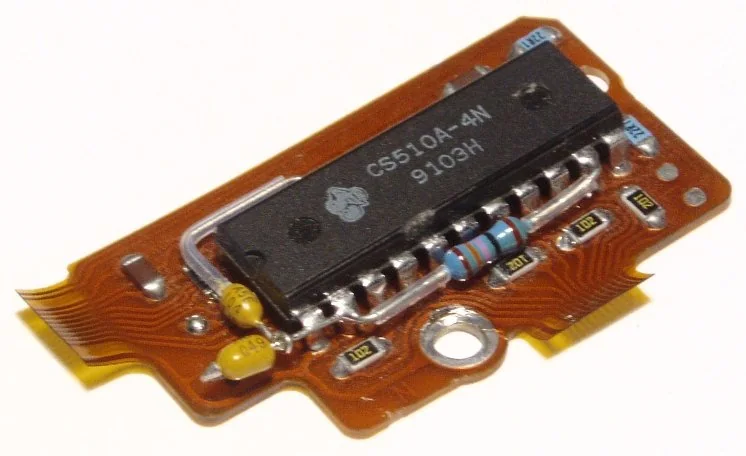

How should flex PCB materials be selected for bending and connectors?
Flex PCB material selection depends on how the circuit moves and how it is supported.
Common flex substrate choices include:
- polyimide for demanding temperature and reliability requirements
- polyester for cost-sensitive applications
- specialty films for controlled electrical or environmental requirements
Flex performance depends on the entire stack:
- substrate thickness
- copper type
- coverlay structure
- adhesive system
- stiffener design
Flex PCB material references commonly compare PI, PET, PEN, and other film options by flexibility, temperature capability, dielectric properties, and dimensional stability. citeturn0search1
For bend review:
For reinforcement review:
Flex material selection matrix
| Application condition | Preferred review focus |
|---|---|
| Static installation bend | Bend radius, thickness, installation stress |
| Dynamic movement | Copper fatigue, layer structure, cycle life |
| Connector tail | Stiffener thickness, flatness, insertion fit |
| Rigid-flex transition | Mechanical transition and strain concentration |
A flex PCB is not selected only because it can bend. It is selected because the complete structure survives the intended movement and assembly condition.
Why are package substrates different from advanced PCBs?
Package substrates are often discussed together with advanced PCBs, but their engineering role is different.
The key difference is ownership.
A package substrate may sit between semiconductor devices, interposers, package assemblies, and system boards. The substrate is only one part of a larger integration chain.
For advanced packaging environments such as CoWoS-related structures, the review should define:
- substrate responsibility
- package integration responsibility
- system-board responsibility
- validation ownership
For the package-substrate branch, see:
Package substrate review matrix
| Area | Review question |
|---|---|
| Material system | Is the substrate technology appropriate for the package platform? |
| Build-up structure | Are process capabilities aligned with required geometry? |
| Warpage | Can the substrate maintain package assembly requirements? |
| Validation boundary | Which results belong to substrate release versus package qualification? |
A package substrate should not be evaluated only by PCB terminology. It should be evaluated by its position in the package architecture.
What failure modes should suppliers review before production?
Advanced materials usually fail at the interfaces between processes.
| Failure mode | Typical cause | Review point |
|---|---|---|
| MCPCB thermal performance loss | Poor thermal interface, voiding, flatness issues | Thermal process review |
| Flex cracking | Excessive bend stress or unsuitable copper structure | Bend and material review |
| Connector mismatch | Incorrect stiffener thickness or bonding variation | Mechanical fit review |
| Package substrate warpage | Material mismatch or process stress | Package handoff review |
| Delamination | Adhesive, lamination, or thermal-cycle stress | Process qualification review |
This failure-mode view helps teams select validation evidence based on actual risk.
What evidence should be frozen before RFQ and first build?
A supplier review package should define:
Material information
- exact substrate family
- material grade
- thickness requirements
- copper or metal-core construction
- dielectric requirements
Manufacturing information
- stackup target
- fabrication capability
- assembly assumptions
- inspection requirements
- process limitations
Validation information
- thermal requirements
- mechanical requirements
- package handoff requirements
- acceptance criteria
Before first build, the most important document is not only the drawing. It is the boundary definition showing what the supplier is expected to prove.
Next steps with APTPCB
If your design no longer behaves like a baseline FR-4 PCB, provide the stackup, material requirements, Gerber files, assembly assumptions, and validation goals. APTPCB can review whether the main challenge is thermal processing, flex reliability, connector integration, or package-substrate ownership before production release.
Related engineering reviews:
FAQ
Are advanced PCB materials always better than FR-4?
No. They are selected when a specific requirement changes the engineering route, such as thermal transfer, flexibility, electrical performance, or package integration.
Is MCPCB mainly a material choice?
MCPCB is also a manufacturing-process choice because thermal mass affects assembly, inspection, and depanelization.
Which flex PCB material is most common?
Polyimide is widely used because it provides a balance of flexibility, thermal stability, and reliability. citeturn0search1
Is a package substrate simply a smaller high-density PCB?
No. A package substrate belongs to a semiconductor integration chain and must be reviewed with clear ownership boundaries.
What should suppliers receive before quoting?
They should receive material targets, stackup requirements, manufacturing assumptions, validation expectations, and the intended application conditions.
