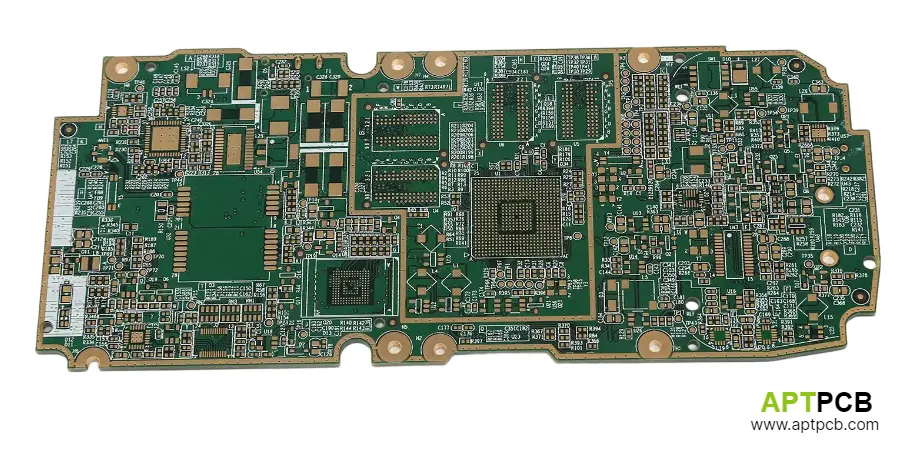

Selecting between KB-6165C and KB-6165LE PCB laminate is not simply a comparison of specifications. Both materials belong to the Kingboard KB-6165 family, but they address different PCB reliability priorities.
KB-6165C is generally selected when electrical insulation, compliance requirements, CTI performance, and a controlled OEM material specification are the primary drivers.
KB-6165LE is selected when the PCB structure creates mechanical stress risk, especially through-hole reliability concerns caused by thermal expansion in thick multilayer boards.
The correct choice depends on the failure mechanism the PCB must prevent.
In This Guide
- What is the difference between KB-6165C and KB-6165LE?
- KB-6165C vs KB-6165LE selection matrix
- What are the KB-6165C specifications and advantages?
- Why choose KB-6165LE for low Z-axis expansion PCB designs?
- Which PCB failures does low Z-CTE prevent?
- When is halogen-free FR-4 the right choice?
- What manufacturing checks are required before production?
- How should KB-6165C and KB-6165LE PCBs be qualified?

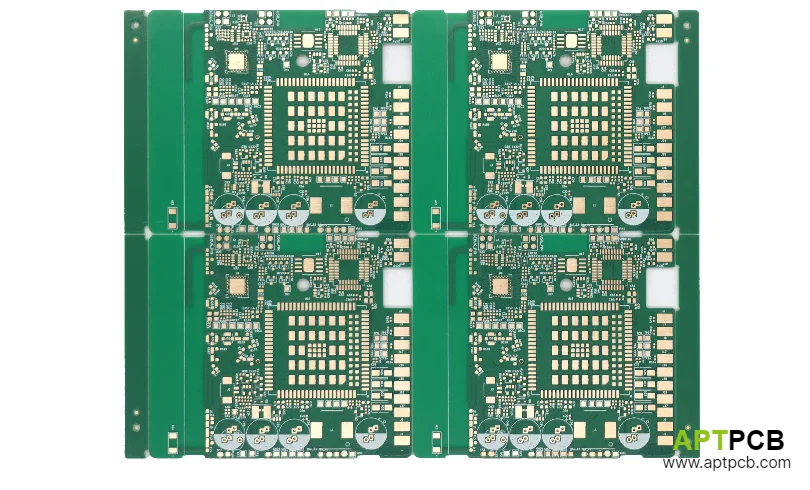

What Is the Difference Between KB-6165C and KB-6165LE?
The primary difference is the engineering problem each material is designed to solve.
| Material | Primary Design Priority | Main Benefit | Typical Application Driver |
|---|---|---|---|
| KB-6165C | Electrical reliability and compliance | Halogen-free/high CTI-oriented material path | OEM environmental requirements, automotive, industrial equipment |
| KB-6165LE | Mechanical reliability | Lower Z-axis expansion | Thick multilayer boards, thermal cycling, via reliability |
A PCB designer should evaluate the board construction before selecting the laminate.
KB-6165LE provides value when thermal expansion creates measurable mechanical stress. Examples include:
- High layer-count multilayer boards.
- Thick backplanes or industrial controllers.
- High aspect-ratio vias.
- Automotive thermal cycling environments.
- IPC Class 3 reliability targets.
KB-6165C is more suitable when the main requirement is material compliance, electrical insulation capability, or a customer-approved laminate specification.
KB-6165C vs KB-6165LE Selection Matrix
| Design Requirement | Recommended Material | Engineering Reason |
|---|---|---|
| Standard mid-Tg multilayer PCB | KB-6165 | Balanced cost and reliability |
| Lower Z-axis expansion required | KB-6165LE | Reduced thermal movement through PCB thickness |
| Filled resin and improved dimensional stability | KB-6165F | Lower expansion characteristics |
| Halogen-free requirement | KB-6165G / KB-6165GC | Mainstream halogen-free material options |
| High CTI electrical insulation requirement | KB-6165C or KB-6165GC | Electrical reliability priority |
| Severe thermal reliability requirement | KB-6168LE or higher Tg materials | Increased thermal margin |
The material decision should begin with the reliability requirement, not the laminate name.
What Are the Key KB-6165C PCB Specifications?
KB-6165C is a mid-Tg FR-4 laminate option intended for applications requiring additional electrical and environmental performance considerations.
Typical engineering values include:
| Property | KB-6165C Typical Value |
|---|---|
| Tg (DSC) | Approximately 157°C |
| Td | Approximately 352°C |
| Z-CTE (50–260°C) | Approximately 2.8% |
| Dk @ 1 GHz | Approximately 4.6 |
| Df @ 1 GHz | Approximately 0.016 |
| T-260 | >60 min |
| T-288 | >30 min |
| Flame Rating | UL94 V-0 |
KB-6165C is commonly selected for:
- Automotive and industrial PCB programs.
- Products requiring documented laminate control.
- Designs where electrical insulation performance is a priority.
- OEM-approved material lists.
KB-6165C provides a balanced mid-Tg solution where the board requires more than standard FR-4 but does not require maximum low-expansion performance.
Why Choose KB-6165LE for Low Z-Axis Expansion PCB Designs?
KB-6165LE focuses on reducing mechanical stress caused by thermal expansion during PCB assembly and field operation.
Typical engineering values include:
| Property | KB-6165LE Typical Value |
|---|---|
| Tg | Approximately 162°C |
| Td | Approximately 355°C |
| Z-CTE | Approximately 2.6% |
| Dk @ 1 GHz | Approximately 4.6 |
| Df @ 1 GHz | Approximately 0.016 |
The difference in Z-CTE between KB-6165C and KB-6165LE may appear small in a datasheet comparison, but repeated thermal cycling can amplify small expansion differences in demanding PCB structures.
KB-6165LE is commonly considered for:
- Thick multilayer boards.
- High via-count designs.
- Automotive electronics.
- Long-life industrial products.
- Applications requiring improved plated through-hole durability.
Which PCB Failures Can Low Z-CTE Prevent?
The primary reliability advantage of lower Z-axis expansion is reducing mechanical stress through the PCB thickness.
| Failure Mode | Design Condition Creating Risk | Material Benefit |
|---|---|---|
| Plated through-hole cracking | Thermal cycling and thick boards | Reduced barrel stress from expansion |
| Via fatigue | Repeated temperature changes | Lower mechanical movement per cycle |
| Layer registration variation | Large multilayer constructions | Improved dimensional stability |
| Lead-free assembly reliability issues | High reflow temperatures | Additional thermal performance margin |
KB-6165LE becomes more attractive when multiple stress factors exist together:
- Board thickness above approximately 2.5 mm.
- High aspect-ratio plated holes.
- Frequent thermal cycling.
- Long service-life requirements.
- Automotive or industrial qualification standards.
When Is Halogen-Free PCB Material the Right Choice?
Halogen-free PCB selection is normally driven by product requirements rather than basic PCB operation.
Common reasons include:
- Automotive OEM specifications.
- Corporate restricted-substance policies.
- Environmental compliance requirements.
- Industrial or medical product qualification programs.
A halogen-free laminate should be selected when the product specification requires it. Material selection should still consider reliability, manufacturing capability, and electrical requirements.
What Manufacturing Checks Are Required Before Production?
Specialty laminates require process validation because material properties affect fabrication behavior.
KB-6165C manufacturing considerations
Confirm:
- Lamination profile compatibility.
- Resin cure conditions.
- Surface treatment compatibility.
- Solder mask adhesion.
- CAF evaluation requirements.
KB-6165LE manufacturing considerations
Confirm:
- Drill parameter compatibility.
- Via reliability testing.
- Stackup impedance validation.
- Registration capability.
- Resin and filler processing conditions.
Material selection should be reviewed together with PCB fabrication capability. A laminate that performs well in specifications still requires a manufacturing process capable of maintaining those properties.
How Should KB-6165C and KB-6165LE PCBs Be Qualified?
Before production approval, verify both material identity and manufacturing performance.
| Qualification Item | Supplier Verification |
|---|---|
| Material certificate | Confirm exact laminate grade and thickness |
| Datasheet validation | Confirm Tg, Td, Dk, Df, and CTE values |
| Stackup review | Validate impedance and construction |
| Thermal reliability testing | Confirm via and PTH durability |
| Process capability review | Verify drilling, lamination, and registration control |
| Traceability | Maintain material batch records |
A PCB supplier should support more than laminate procurement. The supplier should demonstrate that the selected material works with the complete PCB manufacturing process.
How to Order KB-6165C or KB-6165LE PCBs from APTPCB
APTPCB supports prototype and production PCB manufacturing using specialty Kingboard materials.
For material selection review, provide:
- Gerber files.
- Layer count.
- Board thickness.
- Operating temperature range.
- Reliability requirements.
- Customer-approved material list when applicable.
APTPCB engineering review can help determine whether KB-6165C, KB-6165LE, or another KB-6165 family material provides the correct balance of reliability, availability, and cost.
